Lookout™ Sensing System
Sensing System technologies. Designed to give
operators clearer awareness of what’s around them.
Lookout™ Has Your Back — And Your Front, and Overhead
Lookout Platform is MEC’s evolution of platform-mounted obstacle sensing — built on proven technology and designed to give operators clearer awareness of what’s around them. Where earlier systems offered a single sensing zone, Lookout Platform expands coverage to the front, rear, and overhead areas of the platform, giving broader coverage to help prevent damage to expensive surrounding equipment and facilities.
KEY BENEFITS
Platform-Wide Awareness

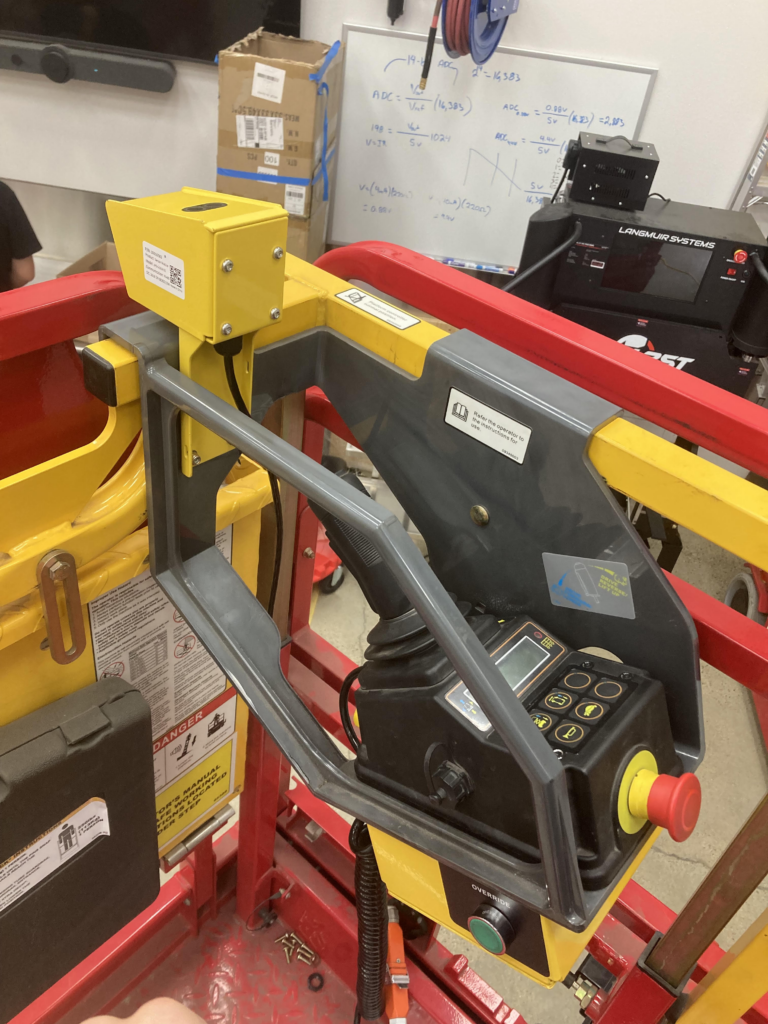

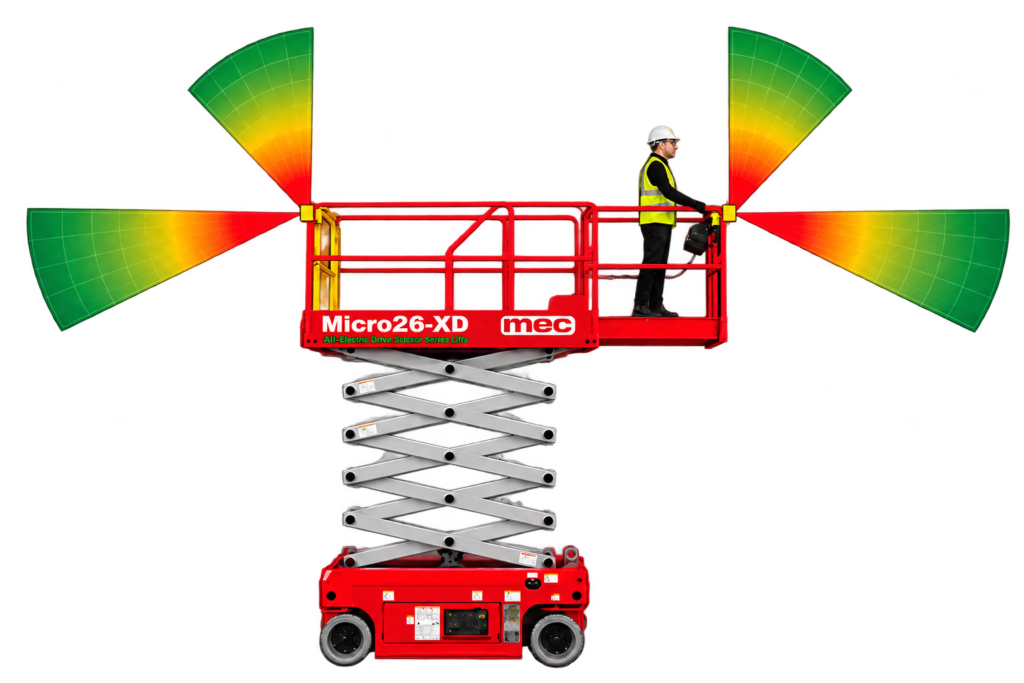

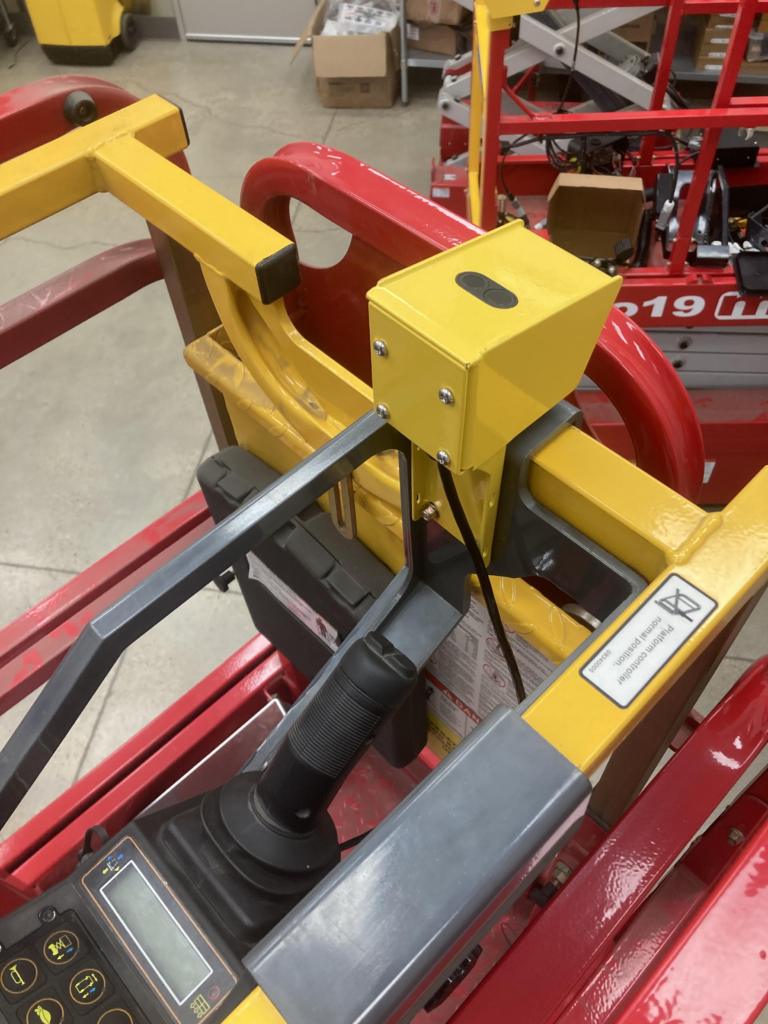

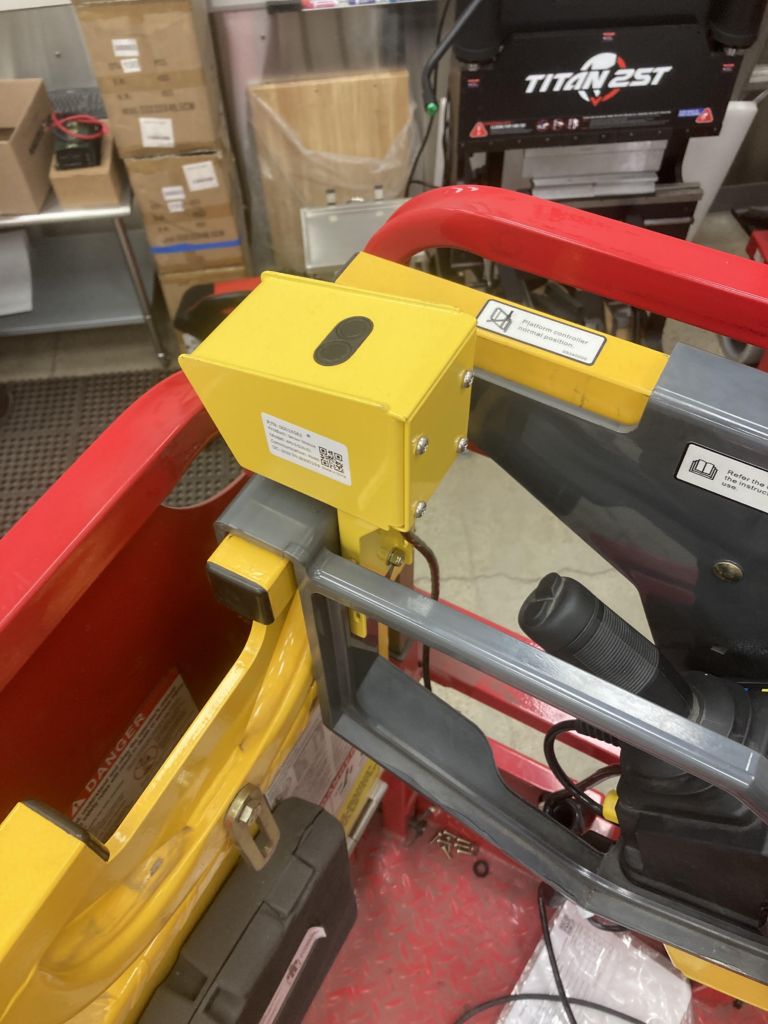

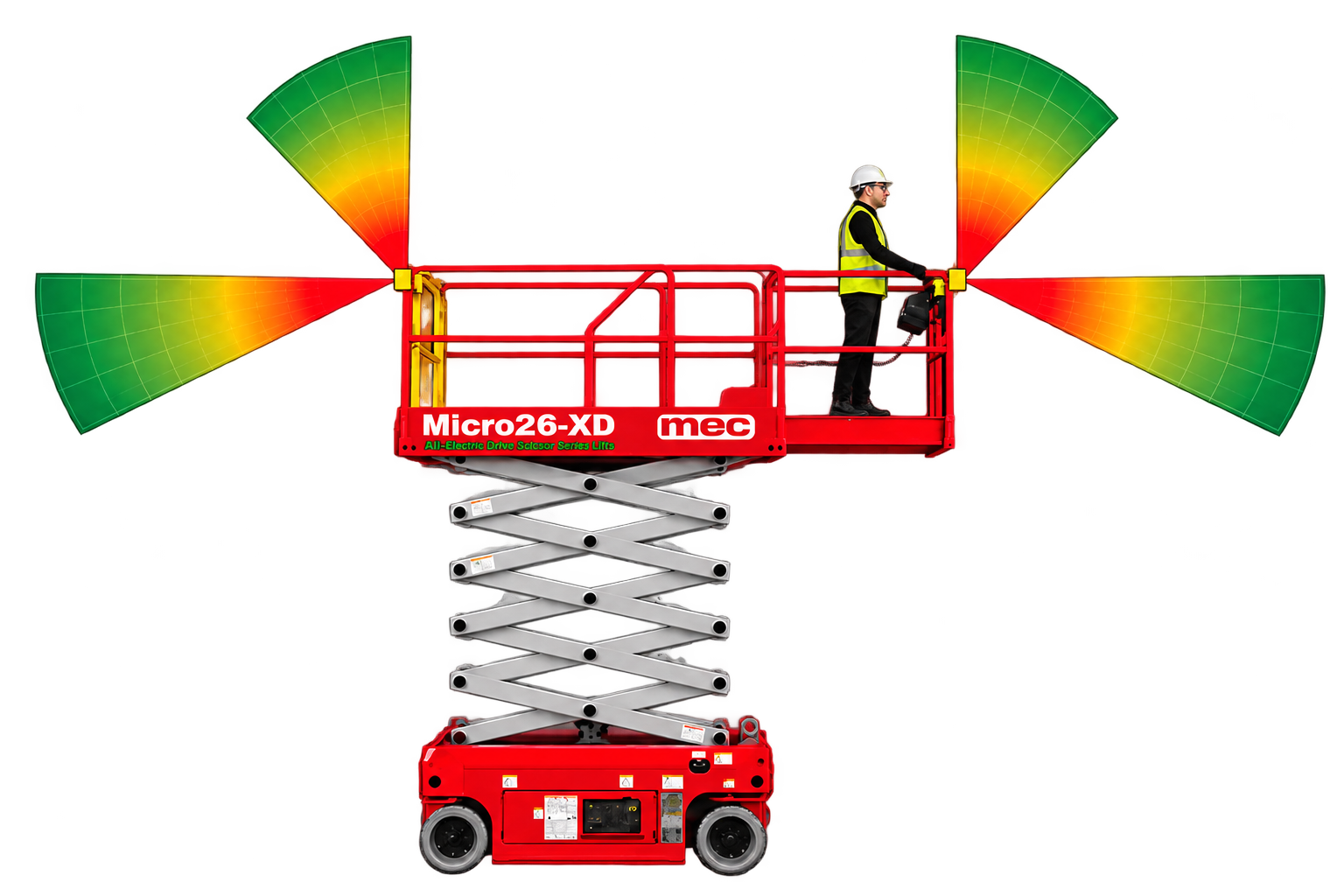

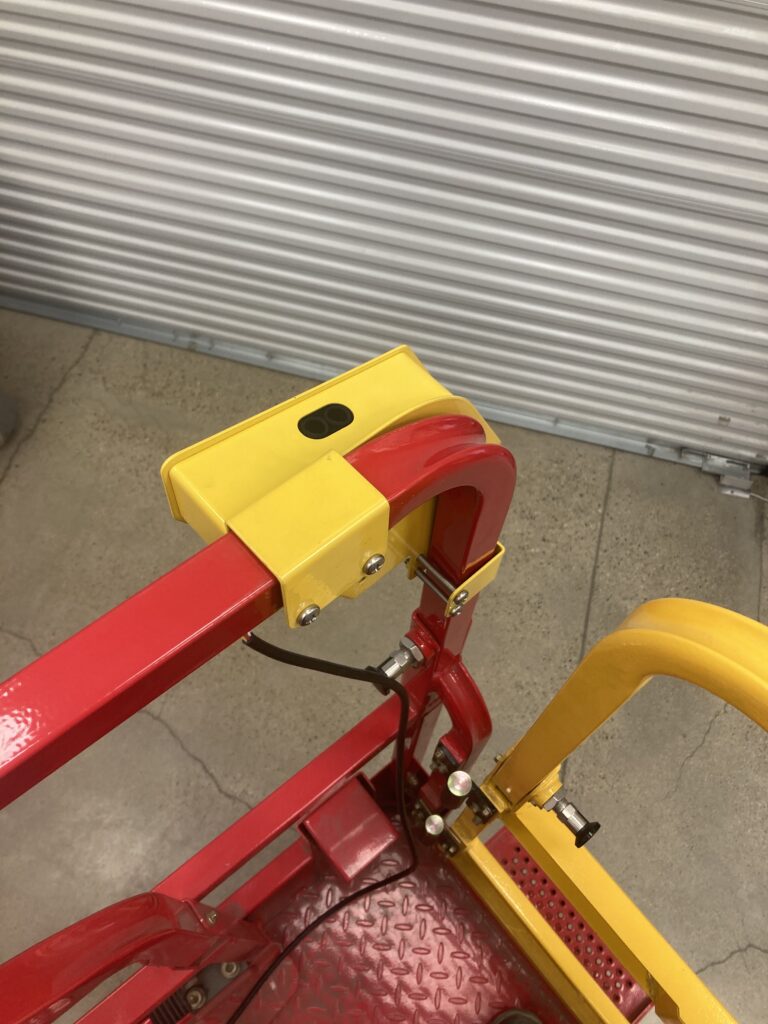

Sensors positioned around the platform detect obstacles to the front, rear, and overhead.
Simple by Design
No confusing sensor counts or configurations to specify. Lookout is offered as a straightforward package, built for easy ordering
Proven Technology
Built on the original MEC Proactive Protection Safety System® (PPSS) sensing that operators already trust.
HOW IT WORKS
Note: Sensors are only engaged in the direction of drive/lift. Warn/Slow/Stop can be toggled to Warn/Slow by a technician.
WARN
Alerts the operator as an obstruction enters the sensing zone
SLOW
Automatically slows the travel speed or elevating speed to approximately 50%
STOP
Stops travel or elevation of the machine upon reaching a close proximity to the detected obstacle
OVERRIDE
Once the control handle is returned to neutral, this button can be depressed to allow continued diligent movement towards the obstacle
Current Available Models
| Model | Kit # |
|---|---|
| Micro 19 | 49901 |
| Micro 19-XD | 49901 |
| Micro 2032 | 49900 |
| Micro26 | 49900 |
| Micro 26-XD | 49900 |
| 3232SEAC | 49900 |
| 4046SEAC | 49900 |
| 4555SEAC | 49900 |
| Model | Kit # |
|---|---|
| Micro-19+ | 49907 |
| Micro 19-XD+ | 49907 |
| Micro 2032+ | 49907 |
| Micro 26+ | 49907 |
| Micro 26-XD+ | 49907 |
| 3232+ | 49907 |
| 4046+ | 49907 |
| 4555+ | 49907 |
