Micro 19®+

The original Micro Scissor, upgraded with improved AC drive performance and the ability to work where others can't.
High Capacity in an UltraCompact Design:

A 600 lb platform capacity and 300 lb deck extension give operators the flexibility they need in a machine that fits through standard doorways and into tight spaces.

Greater Maneuverability:

High-angle steering coupled with front-wheel drive motors delivers a tighter turning radius for easier transport loading and navigation.

Longer Runtime:

AC front wheel drive brushless motors increase duty cycles for stronger, more consistent performance throughout the workday.

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Product Specs

18 ft 3.6 in
Platform Height
32 in
Machine Width
5 ft
Machine Length
600 lb
Platform Capacity
2,995 lb
Machine Weight

Standard Features

Performance

  • Front wheel AC direct-electric drive
  • Fully proportional drive & lift controls

Safety

  • Entrapment mitigation designed into controls
  • Active pothole protection
  • Emergency shut-off at platform & lower controls
  • Non-skid metal deck construction
  • Descent & all-motion alarms
  • Flashing beacon
  • Drive speed interlock
  • Multi-axis tilt sensor
  • Multiple disc brakes
  • Scissor maintenance lock
  • Automatic parking brake

Serviceability

  • Leak Containment System® (LCS) Patent #11,112,060
  • Lubrication-free scissor bearings
  • Battery charger
  • Slide-out service tray
  • Onboard diagnostics — no analyzer tool required
  • Hour meter
  • Machine tie down points

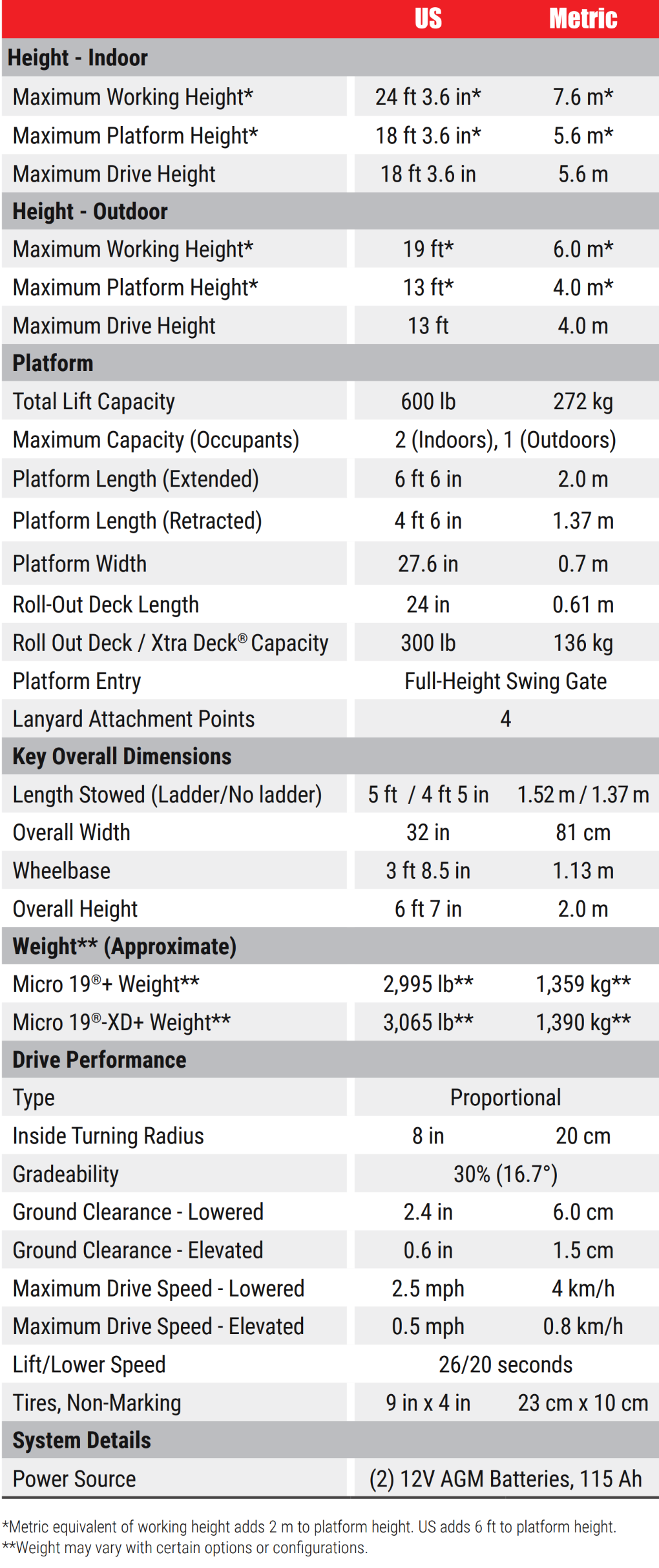

Micro19+&19-XD+_SpecChart

Highlights

The original Micro with improved AC drive and lift performance

  • 19’ drives at full height lift, no outriggers required
  • 600 lb maximum platform capacity and 300 lb deck extension capacity
  • High angle steering coupled with front-wheel drive motors for tighter turning radius
  • AC front wheel drive brushless motors increase duty cycles
  • 12″ diameter, 4″ wide wheels for easy transport loading and jobsite navigation

Other Features

  • Self-closing, platform gate with magnetic latch
  • Theft deterrent control box bracket
  • Lockable battery disconnect
  • Side & rear forklift pockets

Options & Accessories

  • Upper Control Box Guard
    •1,000W Inverter
    •Tool Tray
    •Cold Weather Package
    •Proactive Platform Safety System® (PPSS)
    •Perimeter Laser Lighting
    •Anti-Fatigue Mat
    •Pipe Racks
    •Extended Warranty

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Operator's Manual
Download PDF
