CD-9T

Full Featured, Ready to Work Standard Equipment. Serious Capability

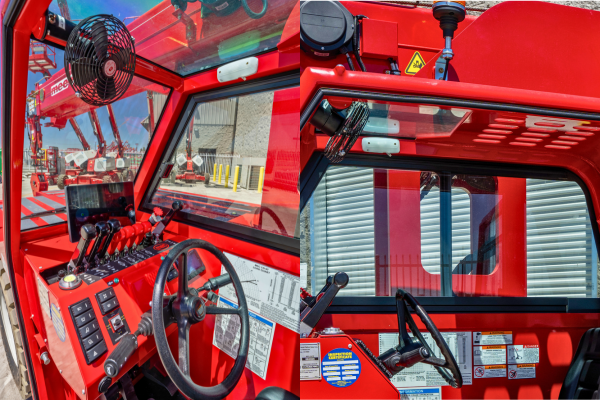

360° Visibility

A chassis‑mounted, side‑placed engine and clean boom design minimize obstructions, giving operators clearer sightlines around the jobsite.

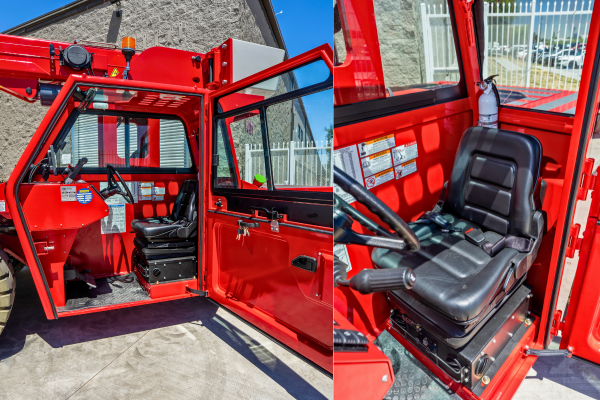

Comfortable, Spacious Cab

An enclosed comfort cab with 25% more interior volume than competitive models, plus standard A/C, heat, and a suspension seat to reduce fatigue.

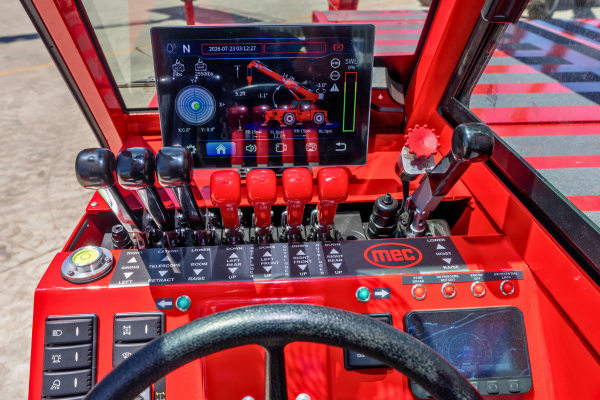

Smooth, Confident Controls

Responsive controls paired with a hydrostatic 4WD system provide smoother positioning and better maneuverability in tight work areas.

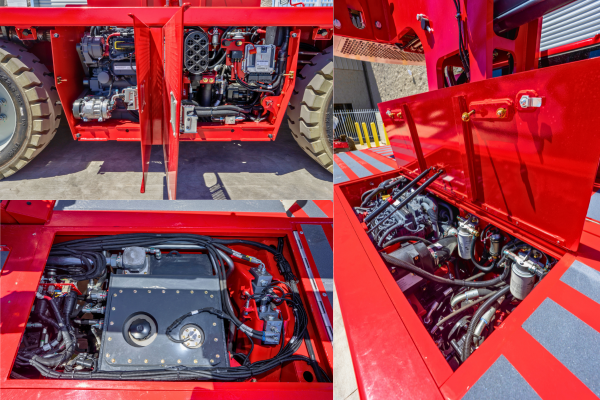

Easy Service Access

The side‑mounted engine allows faster, safer ground‑level maintenance and improved service access.

Product Specs

40 ft 6 in w/ extension

Platform Height

6ft 6 in

Machine Width

19 ft

Machine Length

18,000 lb

Platform Capacity

21,473 lb

Machine Weight

Specification	US	Metric
Max Lifting Capacity (On Rubber)	11,400 lbs.	5,171 kg
Max Lifting Capacity (On Outriggers)	18,000 lbs.	8,165 kg
Max Sheave Height w/ Extension	46 ft-8 in.	14.22 m
Max Sheave Height w/out Extension	34 ft-5 in.	10.49 m
Max Outreach w/ Extension	40 ft-6 in.	12.34 m
Max Outreach w/out Extension	30 ft-6 in.	9.30 m
Standard Boom Extension	10 ft	3.05 m
Stowed Height	7 ft-10 in.	2.39 m
Overall Length	19 ft	5.79 m
Overall Width (On Rubber)	6 ft-6 in.	1.98 m
Overall Width (On Outriggers)	9 ft-10 in.	3.00 m
Tailswing	24 in.	0.61 m
Max Drive Speed	15 mph	24.1 km/h
Gradeability	40%
Wheelbase	8 ft-1.5 in.	2.48 m
Gross Vehicle Weight	21,473 lbs.	9,739 kg
Ground Clearance	10-3/8 in.	26.4 cm
Tires	Foam-Filled, Non-Marking
Diesel Power Source	Deutz 74Hp Turbo Diesel
