Micro 19®-XD

MEC’s broad range of Micro class slab scissor lifts features the most popular in the line at 19ft platform height with Xtra-Deck® innovation

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 249 lbs., Max. Localized Pressure: 116 lbs.)


Pull-down Xtra-Deck® gives additional 20in. height for 1-person access through ceiling panels with guardrails on 4 sides enabling both hands to freely complete work tasks

Direct Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

Product Specs

19 ft. (+20 in.*).
Platform Height
32 in.
Machine Width
60 in.
Machine Length
500 lbs.
Platform Capacity
2,820 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Full Height Swing Gate
Lanyard Attachments
110v Power to Platform
Xtra Deck® Additional 20-Inch Height Platform Patent Pending

Direct Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

24v 115Ah AGM DC Electric Power (Maintenance-Free Batteries)
Battery Charge Indicator
Single 100v Receptacle at Chassis for Common Plug Connection for Battery Charger and Power to Platform

Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Xtra Deck® Solution to Standing on the Midrails Hazard
Lift Control Orientation Designed to Mitigate Overhead Entrapment
Dedicated Compartments Protect Electrical and Hydraulic Components
Non-Skid Metal Deck Construction
Emergency Shut-Off at Platform and Lower Controls
Descent Alarm
Drive Speed Interlock
Scissor Maintenance Lock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Leak Containment System® – Patent Number 11,112,060                 Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

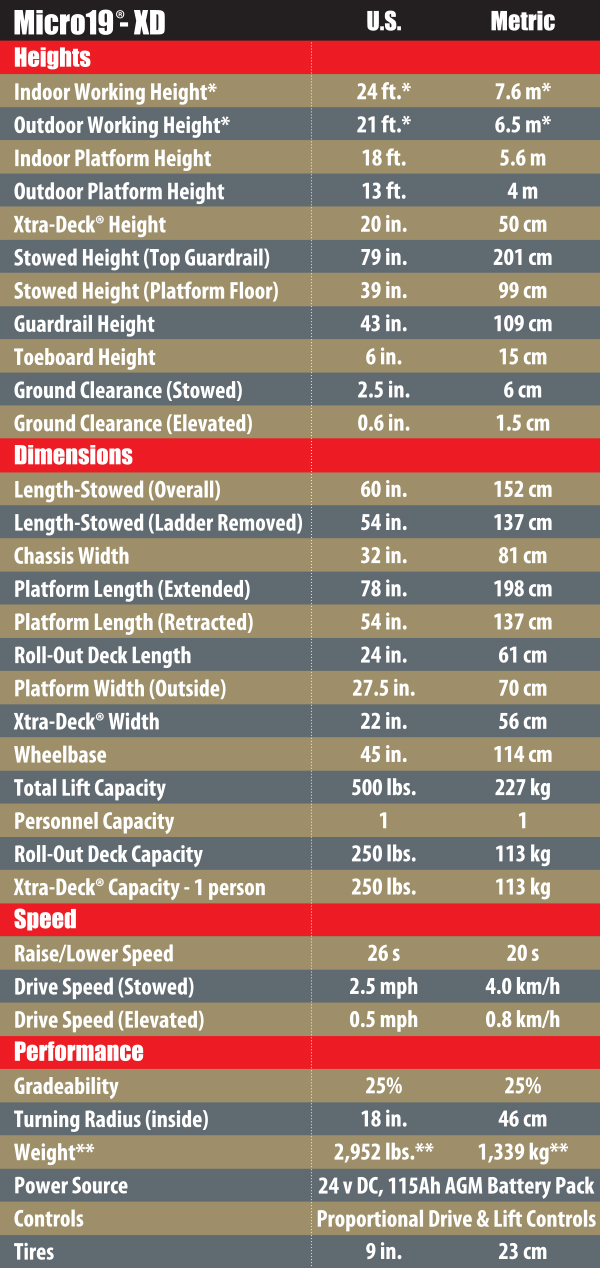

Micro19-XD grid


Pull-Down Xtra Deck Gives Additional 20 in. (50cm) Height for 1 Person

22in. (56cm) Wide Xtra-Deck® Allows Access Through Ceiling Panels

Guardrails on 3 Sides Slide Up to Meet Regulation Height with a 4th Side Swinging Gate Rail Enabling Both Hands to Freely Complete Work Tasks

Deploys or Stows in Seconds

Can be used with the Roll-Out Deck Extended or Retracted

Direct Electric Drive for Extended Duty Cycle, Smooth Control and Fewer Leak Points


900W Inverter
Cold Weather Package
Upper Control Box Cover
Proactive Platform Safety System® (PPSS)
Second Year Extended Warranty

Want a PDF of this brochure?


Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
