4555✚

Leading High Capacity in a 51’ Working Height Scissor for Congested Worksite & Warehouse Applications
Lift More:

900 lb platform capacity and 300 lb deck extension supports multiple workers and material

More Uptime with Greater Duty Cycles:

Proportional lowering provides precise, smooth positioning at height while recovering energy to deliver 22% greater duty cycles.

Extended Tire Life:

Unique non-marking rubber tire compound resists wear for longer-lasting performance on demanding jobsites.

View Legacy 4555SE Model Here

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Product Specs

51 ft
Platform Height
4 ft 7 in
Machine Width
9 ft 4 in
Machine Length
800 lb
Platform Capacity
7,800 lb**
Machine Weight
4555✚

Standard Features

Performance

  • Front wheel AC direct-electric drive
  • Fully proportional drive & lift controls

Safety

  • Entrapment mitigation designed into controls
  • Active pothole protection
  • Emergency shut-off at platform & lower controls
  • Non-skid metal deck construction
  • Descent & all-motion alarms
  • Flashing beacon
  • Drive speed interlock
  • Multi-axis tilt sensor
  • Multiple disc brakes
  • Scissor maintenance lock
  • Automatic parking brake

Serviceability

  • Leak Containment System® (LCS) Patent #11,112,060
  • Lubrication-free scissor bearings
  • Battery charger
  • Slide-out service tray
  • Onboard diagnostics — no analyzer tool required
  • Hour meter
  • Machine tie down points

Other Features

  • Self-closing, platform gate with magnetic latch
  • Theft deterrent control box bracket
  • Lockable battery disconnect

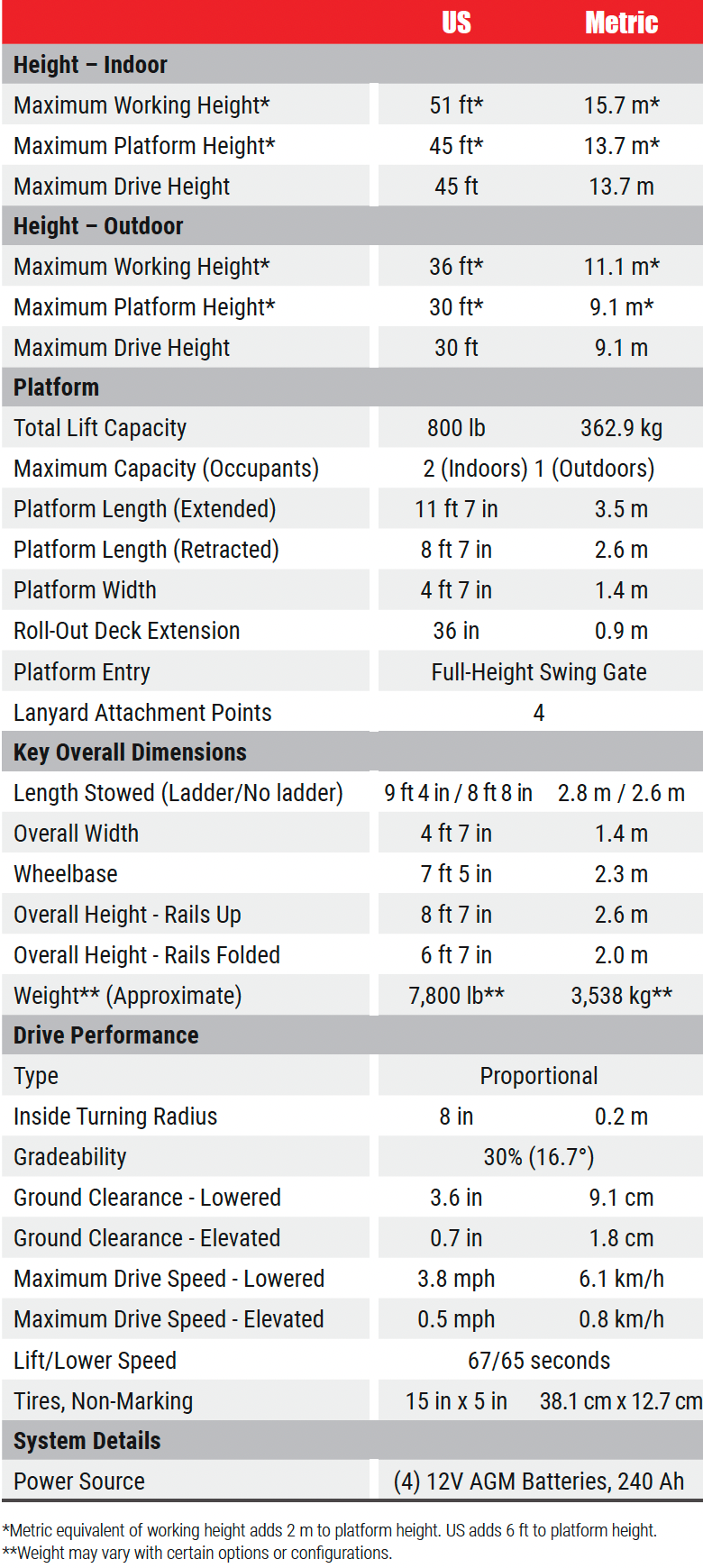

4555Plus_SpecChart

Highlights

High-Capacity 45’ Scissor for Congested Worksite & Warehouse Applications

  • 800 lb platform capacity and 300 lb deck extension supports multiple workers and materials
  • 55” wide with front wheel AC direct electric-drive for jobsite maneuverability
  • Drives at full height, no outriggers required
  • Fold-down guardrails, 79” stowed height passes through a standard single doorway
  • Proportional descent provides smoother positioning while regenerating energy for 22% greater duty cycles
  • MEC’s patented Leak Containment System® comes standard to help contain hydraulic leaks Patent #11,112,060
  • Improved non-marking rubber tire compound for longer wear and extended tire life

Options & Accessories

  • Upper Control Box Guard
    •1,000W Inverter
    •Tool Tray
    •Cold Weather Package
    •Proactive Platform Safety System® (PPSS)
    •Perimeter Laser Lighting
    •Anti-Fatigue Mat
    •Pipe Racks
    •Extended Warranty
