|Product||Max Platform Height||Machine Width||Machine Length||Platform Capacity||Machine Weight|

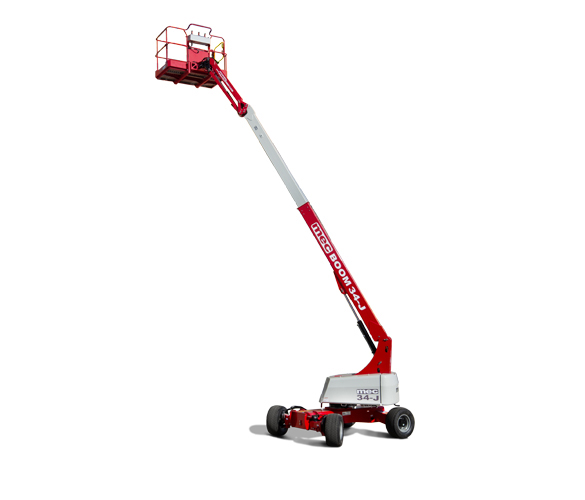

|34-J Telescopic Diesel||34 ft.||92 in.||240 in.||500 lbs.||8,000 lbs.|

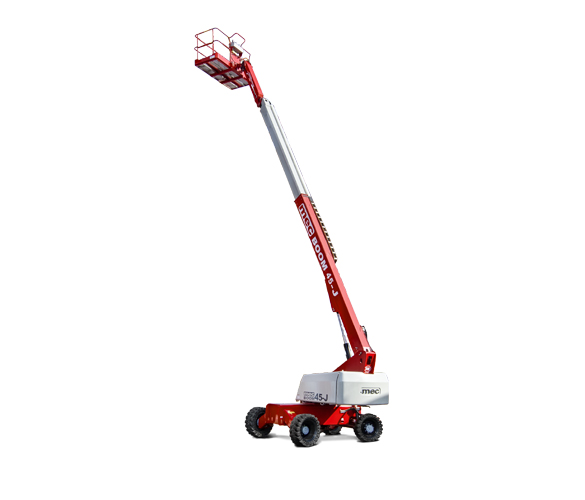

|45-J Telescopic Diesel||45 ft.||96 in.||336 in.||500 lbs.||13,650 lbs.|

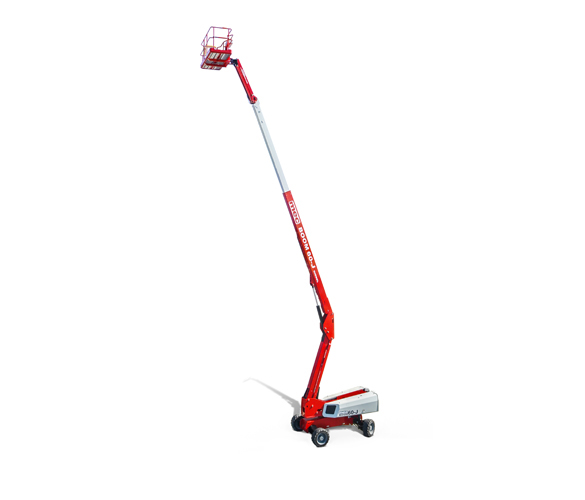

|60-J Telescopic Diesel||60 ft.||96 in.||366 in.||500 lbs.||17,900 lbs.|

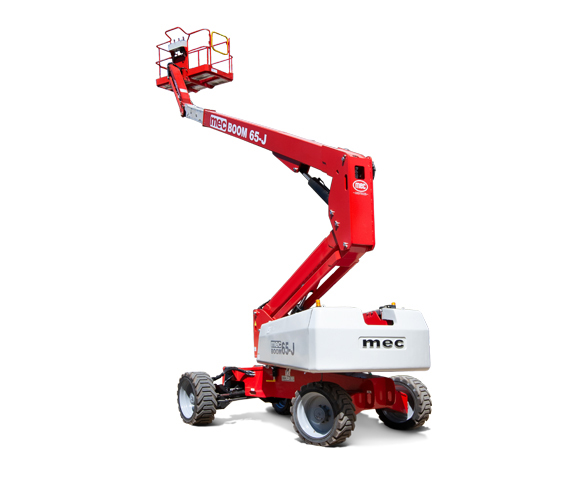

|65-J Telescopic Diesel||65 ft.||90 in.||360 in.||500 lbs.||19,850 lbs.|
|45-AJ Articulated Diesel||45 ft.||91 in.||286 in.||500 lbs.||16,380 lbs.|

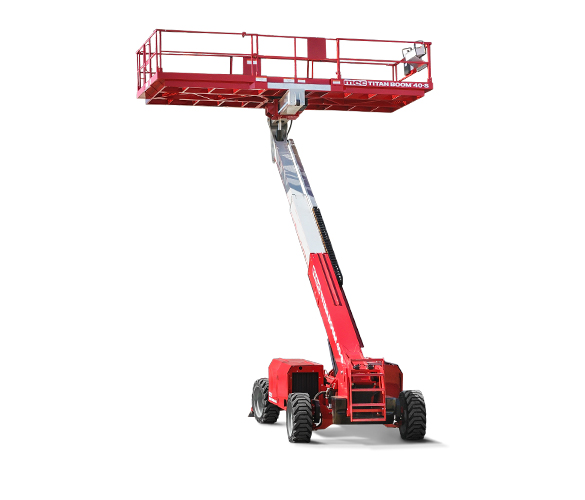

|Titan 40-S Telescopic Diesel||40 ft.||96 in.||264 in.||4,000 lbs.||24,250 lbs.|

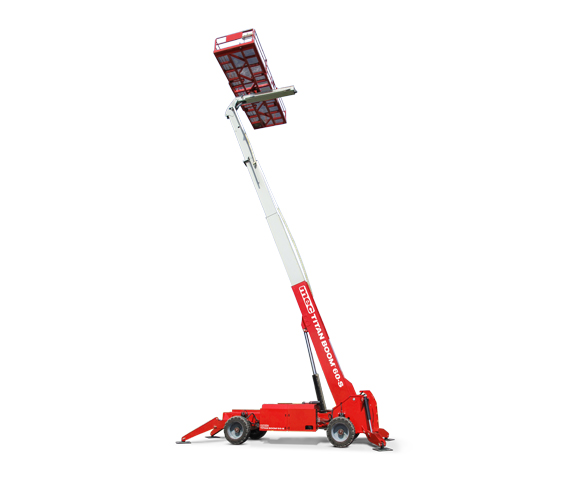

|Titan 60-S Telescopic Diesel||60 ft.||91 in.||276 in.||3,000 lbs.||39,700 lbs.|
A Better SolutionInnovation & Features
Control orientation angled away from the operator so potential entrapment situations are mitigated by a resulting downward movement. Combined with MEC’s PPSS option, operators are proactively warned of an overhead hazard to mitigate collision and entrapment.
MEC Booms are controlled without the use of a footswitch for better maneuverability, greater range of motion and safer operation. 3 joystick controllers, each with an enable switch, offer better ergonomics from no footswitch allowing the Operator a posture that enables better visibility, sturdier stance, fewer distractions and reduced entrapment risk.
Robust one-piece tray design that is quick and easy to install, remove and store when not in use. Meets Glazier needs with one long continuous tray that is lightweight, strong, safe and high visibility.
