Titan 60-S Telescopic Diesel


MEC’s 60ft platform height telescopic Titan Boom lift delivers an innovative cross between a boom lift, ultra scissor lift and telehandler.
Award-Winning 3 in 1 Design

Designed to deliver 3,000 lbs. capacity on a 22 ft. x 90 in. ultra-deck platform with boom outreach and rotation

3 Steering Modes

Gets in close to work areas with 2-Wheel Steer, 4-Wheel Steer and Crab Steer

No Footswitch

3 proportional joysticks for better maneuverability and visibility in platform

Product Specs


60 ft.
Platform Height
91 in.
Machine Width
276 in.
Machine Length
3,000 lbs.
Platform Capacity
40,000 lbs.
Machine Weight

Standard Features

Work Area
Non-skid Metal Deck Construction
3,000 lbs. (1350 kg.) Combined Platform Capacity

2,000 lbs. (900 kg) Material Load Zone in Center of Platform plus 1,000 (450 kg) Distributed Load for up to four(40 Workers and Tools
Stainless Steel Wire Rope Lanyard Anchors for Full Platform Mobility
Easy Access Sliding Side Gates for Material Loading
Pinless Guardrail System for Quick & Simple Guardrail Lowering
AC Power to the Platform

Performance
Fully Proportional Drive and Lift Controls
Oscillating Front and Rear Axles for Frame Leveling Ability
18 in. (.46m) Ground Clearance
High-torque Power Package with Four Wheel Drive
180° Platform Rotation
Dual Front and Rear Stabilizers
One-touch Chassis Leveling

Engine/Power
Two-speed Drive Motors
Kubota Tier 4 Final Turbo Diesel Center
Engine Shutdown Protection

Control System
Triple Joystick Interface
Fully Proportional Multi-Function Controls

Serviceability
Large Swing Module Doors for Access to all Components
On-board Diagnostics Center
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety & Other Features
Emergency Shut-off at Platform and Lower Controls
12V DC Auxiliary Power Unit
Multi-axis Tilt Sensor
Tilt Alarm and Horn
Foam-filled R4 Lug Tread Tires
Four Wheel Disc Brakes
Platform Swing Gate
Hour Meter
Powder Coat Finish
Machine Tie-downs

Flashing Beacon (Continuous)
Automotive Horn

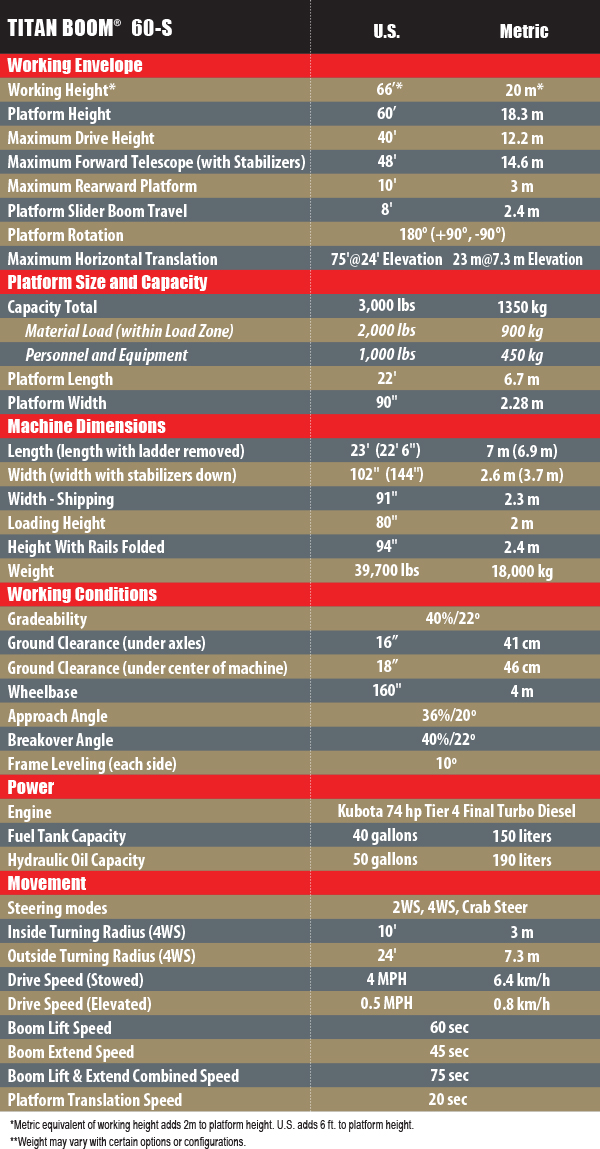

Titan-60 Chart

Highlights

Construction Grade Self-Propelled Booms

Capacity of a Telehandler with the work area of an Ultra-deck Scissor Lift and the reach and Rotation of a Boom

Up to 66 ft. (20m.) working height

Ultra-deck with 3,000 lb (1350 kg.) Combined Material and Personnel Capacity

Huge 22 ft. x 90 in. (6.7 m. x 2.28 m.) Deck Area

Three Steering Modes: 2-Wheel Steer, 4-Wheel Steer, and Crab Steer

Amazing 180° platform rotation plus additional telescope to get in close to work areas

Frame Leveling up to 10° each side

Stabilizer Support for Platform Stability on Heavy Duty Job Sites with One-touch Auto-Leveling

Dual Sliding Centered Side Rails for Fast and Simple Material Loading into Load Zone

Smooth, Fully-proportional Controls on all Boom and Drive Functions

40% Gradeability

Optional Features & Accessories
Air Line to Platform, 1/2 in.
1.27 cm. Inner Diameter
Platform Control Box Cover
Platform Work Lights
Water Line to Platform
Hostile Environment Kit
CE Compliant Options
Australian Compliant Options
12kw 3-phase 275A Welder-Ready Generator
AC Generator (120V/60Hz – 3,000W)
AC Generator (240V/50Hz – 2,500W)
Weld Leads to Platform
Cold Start Package
Arctic Package
Glazier Side Attachments

Optional Platform Power
3kw A/C Generator
12kVA Welder-Ready 3-Phase Generator
Air Line
Auxiliary Hydraulic Circuit

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Glazier Package
Robust one-piece tray design that is quick and easy to install, remove and store when not in use. Meets Glazier needs with one long continuous tray that is lightweight, strong, safe and high visabilit.
Welder Ready Generator Package
Hydraulically driven 7500-watt, 208-volt 3 phase generator and dedicated pump to run the generator providing a simple, safe and reliable system. Control system automatically drops out the generator when machine is functioned and automatically re-engages once movement is complete to save overspeed damage to the generator.
Proactive Platform Safety System® (PPSS)
MEC’s PPSS option senses an overhead object with two ultrasonic sensors located behind the operator. With these high-tech sensors, the operators are proactively warned of an overhead hazard to mitigate collision and entrapment.
