65-J Telescopic Diesel


MEC’s 65ft platform height telescopic boom lift with a jib delivers full-featured value and innovation.
Full-Featured, Robust Design

Feature rich with standard jib, tri-entry platform, steel covers, on-board diagnostics and more

Lighter Weight, 2-Section Boom

2 per truck transportation and less maintenance delivers ongoing operating cost savings

No Footswitch

3 proportional joysticks for better maneuverability and visibility in platform

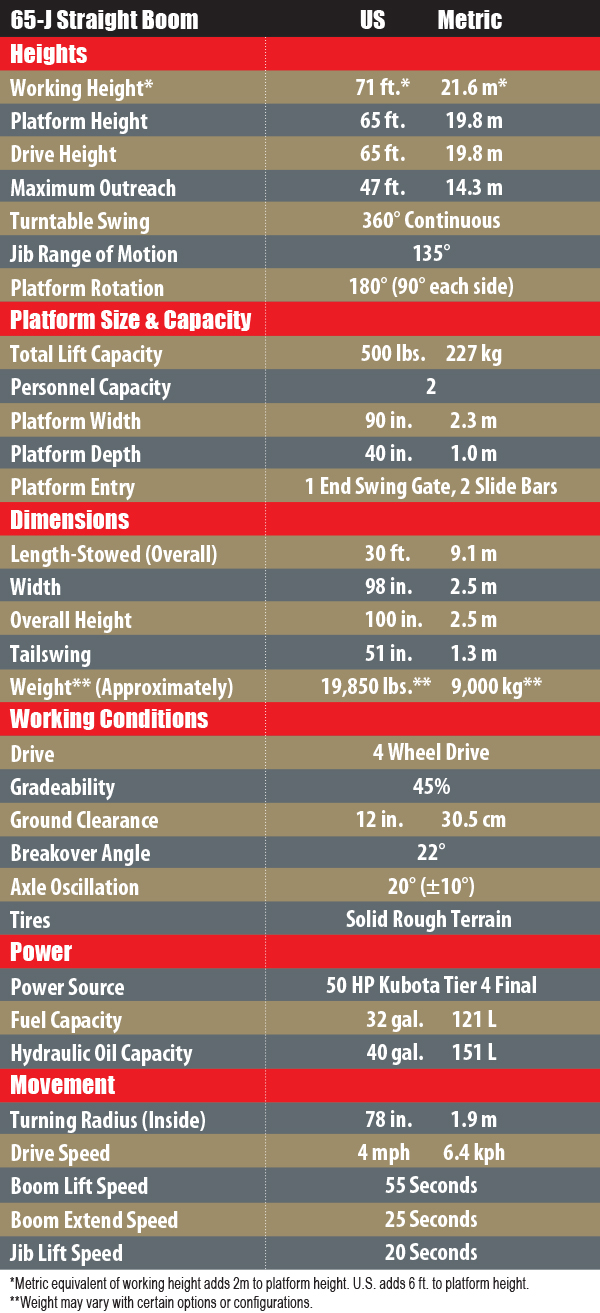

Product Specs


65 ft.
Platform Height
90 in.
Machine Width
360 in.
Machine Length
600 lbs.
Platform Capacity
21,800 lbs.
Machine Weight

Standard Features

Work Area
90” (2.3 m) Work Platform
3-Sided Entry with Swing Gate
600 lb. (272 kg) Platform Capacity
180° Platform Rotation
135° Jib Range of Motion
Power to Platform

Performance
360° Continuous Turntable Rotation
4WD Closed Loop Positive Traction Drive System
45% Gradeability
Oscillating Axle
Self-Leveling Platform
Low Engine RPM Elevated Operation
Two-Speed Drive Motors
71 ft. (21.6 m) Working Height
Full Drive Height

Power
50 HP Kubota Tier 4 Final

Control System
Triple Joystick Interface
Fully Proportional Multi-Function Controls

Safety
Emergency Shut-Off on Platform & Chassis
Auxiliary Power Unit
Multi-Axis Tilt Sensor
Tilt Alarm and Horn
Four Wheel SAHR Braking System
Automotive Horn
Engine Shut Down Protection

Other Features

Hour Meter

Machine Tie-Downs and Lifting Lugs
Lanyard Attachments
Standard Solid RT Tires
On-Board Diagnostics

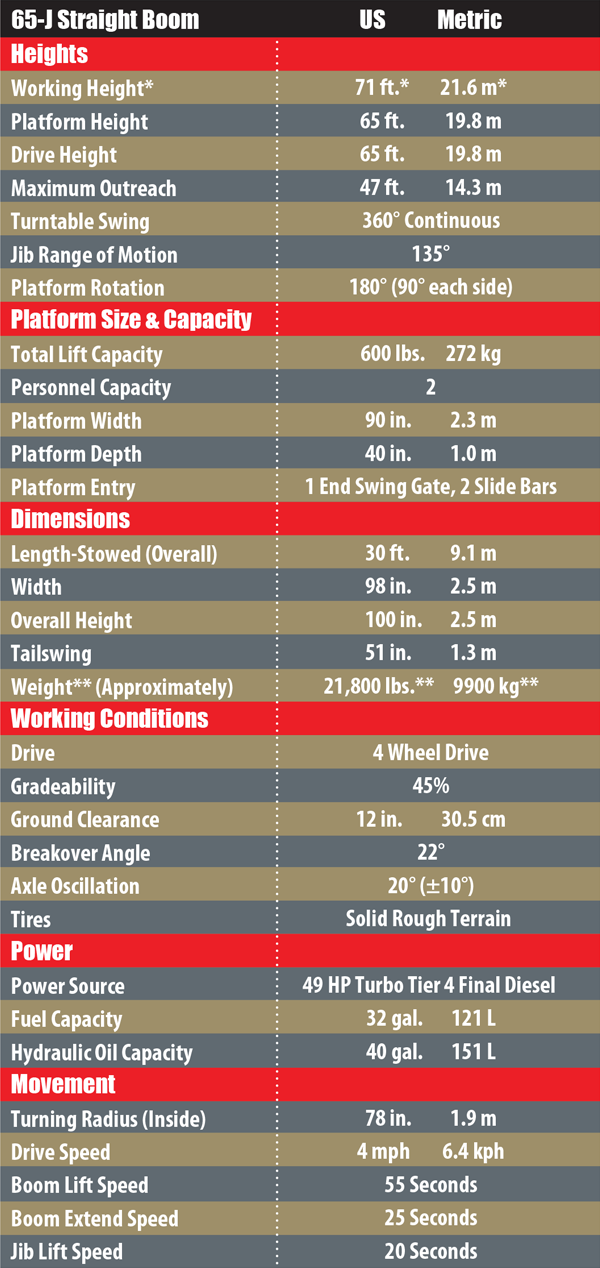

65-J Grid x600 px wide

Highlights

Full-Featured, Rugged, Simple, Reliable

71 ft. (21.6 m) Working Height with Standard 6 ft. (1.8 m) Jib for 135° Jib Range of Motion

Lightweight at 21,800 lbs. (9,888 kg)

Standard 90″ (2.3 m) Platform Includes 3-Sided Entry with Swing Gate

No Chains or Wire Ropes in Boom Extension – Simple Single Hydraulic Cylinder

Ergonomic Platform Controls with Proactive Platform Safety System® Option

4WD and Oscillating Front Axle Standard

360° Continuous Turntable Rotation

Solid Rough Terrain Tires

Kubota Turbo-Charged Engine

Options

Platform Control Box Cover
Platform Work Lights
7.5 kW Welder Ready Generator
3.5 kW AC Generator
Glazier Package
Cold Start Package
CSA Compliant Options
Proactive Platform Safety System® (PPSS)
Second Year Extended Warranty                                                                             Xtra Deck®

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Glazier Package
Robust one-piece tray design that is quick and easy to install, remove and store when not in use. Meets Glazier needs with one long continuous tray that is lightweight, strong, safe and high visibility.
Welder Ready Generator Package
Engineered based on a Harrison hydraulically driven 7500-watt, 208-volt 3 phase generator and specifically designed pump to run the generator (not off the drive pump) providing a simple, safe and reliable system. Control system automatically drops out the generator when machine movement is used and re-engages once movement is complete to save overspeed damage to the generator.
Proactive Platform Safety System® (PPSS)
MEC’s PPSS option senses an overhead object with two ultrasonic sensors located behind the operator. With these high-tech sensors, the operators are proactively warned of an overhead hazard to mitigate collision and entrapment.
