45-J Telescopic Diesel


MEC’s 45ft platform height telescopic boom lift with a jib delivers full-featured value and innovation.
Full-Featured, Robust Design

Feature rich with standard jib, tri-entry platform, steel covers, on-board diagnostics and more

2-Section Boom Design

Construction grade design with no cables or pulleys to deliver savings from lower maintenance and ongoing operating costs

No Footswitch

3 proportional joysticks for better maneuverability and visibility in platform

Product Specs


45 ft.
Platform Height
96 in.
Machine Width
336 in.
Machine Length
600 lbs.
Platform Capacity
14,250 lbs.
Machine Weight

Standard Features

Work Area
90 in. (2.3 m) Platform Work Basket
3-Sided Entry with Swing Gate
600 lb. (272 kg) Platform Capacity
180° Platform Rotation
135° Jib Range of Motion
Power to Platform

Performance
360° Continuous Turntable Rotation
4WD Closed Loop Positive Traction Drive System
40% Gradeability
Oscillating Axle
Self-Leveling Platform
Low Engine RPM Elevated Operation
Two-Speed Drive Motors
50 ft. (15 m) Working Height
Full Drive Height

Power
Kubota V1505 Tier 4 Final

Control System
Triple Joystick Interface
Fully Proportional Multi-Function Controls

Safety
Emergency Shut-Off on Platform & Chassis
Auxiliary Power Unit
Multi-Axis Tilt Sensor
Tilt Alarm and Horn
Four Wheel SAHR Braking System
Automotive Horn
Engine Shut Down Protection

Other Features
Hour Meter
Machine Tie-Downs and Lifting Lugs
Powder Coat Finish
Lanyard Attachments
Standard Solid RT Tires
On-Board Diagnostics

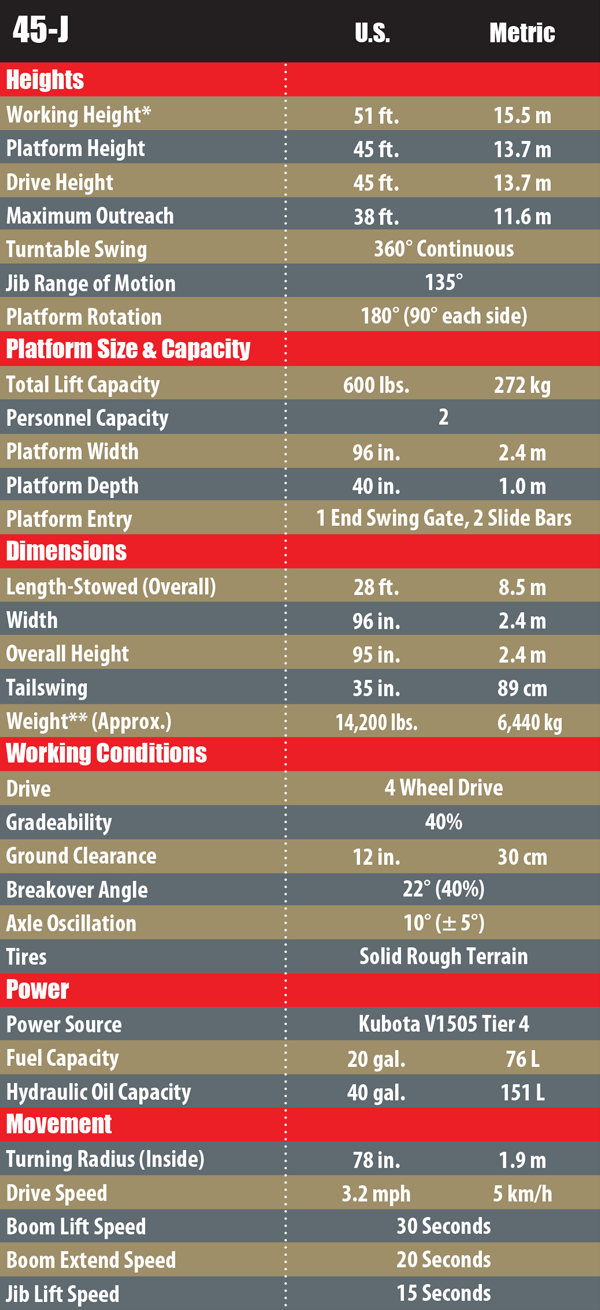

Graph Chart Gray 600 px wide x let fall

Highlights

Full-Featured, Rugged, Simple, Reliable

51 ft. (15.5 m) Working Height with Standard 6 ft. (1.8 m) Jib for 135° Jib Range of Motion

Continuous 360° Turntable Rotation

Lightweight at 14,250 lbs. (6,460 kg) with 600 lbs. (272 kg) Standard Platform Capacity

Solid Rough Terrain Tires

Standard 90 in. (2.3 m) Platform Includes 3-Sided Entry with Swing Gate

Full-Time Hydrostatic 4WD with Oscillating Front Axle and 40% Gradeability

Options

Platform Control Box Cover
Platform Work Lights
7.5 kW Welder Ready Generator
3.5 kW AC Generator
Glazier Package
Cold Start Package
CSA Compliant Options
Proactive Platform Safety System (PPSS)
Second Year Extended Warranty                                                                               Xtra Deck®

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Glazier Package
Robust one-piece tray design that is quick and easy to install, remove and store when not in use. Meets Glazier needs with one long continuous tray that is lightweight, strong, safe and high visability
Welder Ready Generator Package
Engineered based on a Harrison hydraulically driven 7500-watt, 208-volt 3 phase generator and specifically designed pump to run the generator (not off the drive pump) providing a simple, safe and reliable system. Control system automatically drops out the generator when machine movement is used and re-engages once movement is complete to save overspeed damage to the generator.
Proactive Platform Safety System® (PPSS)
MEC’s PPSS option senses an overhead object with two ultrasonic sensors located behind the operator. With these high-tech sensors, the operators are proactively warned of an overhead haszard to mitigate collision and entrapment.
