Micro13®-XD


MEC’s broad range of Micro class slab scissor lifts features the smallest in the line at 13ft platform height with Xtra-Deck® innovation
Lightweight

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 211 lbs., Max. Localized Pressure: 116 lbs.)

Xtra-Deck®

Pull-down Xtra-Deck® gives additional 20in. height for 1-person access through ceiling panels with guardrails on 4 sides enabling both hands to freely complete work tasks

Direct Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

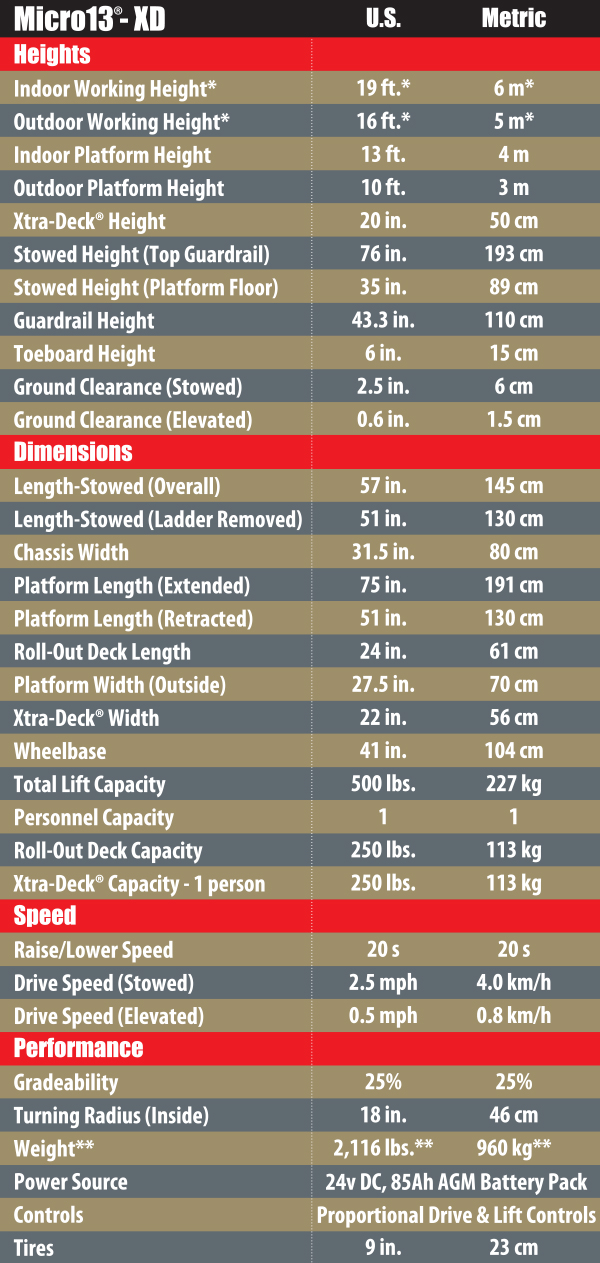

Product Specs


13 ft. (+20 in.*)
Platform Height
31.5 in.
Machine Width
57 in.
Machine Length
500 lbs.
Platform Capacity
2,116 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Standard Swing Gate
Lanyard Attachments
Xtra Deck® Additional 20-inch Height Platform Patent Pending

Performance
Direct Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
24v 85Ah AGM Battery Pack (Maintenance Free)
Battery Charge Indicator
Single 110v Receptacle at Chassis for Common Plug Connection
for Battery Charger and Power to Platform

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Xtra-Deck® Solution to Standing on the Midrails Hazard
Lift Control Orientation Designed to Mitigate Overhead Entrapment
Dedicated Compartments Protect Electrical and Hydraulic Components
Descent Alarm
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Drive Speed Interlock
Scissor Maintenance Lock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

Misc 2021 charts for web jpgs OL Text

Highlights

Pull-Down Xtra Deck® Gives Additional 20 in. (50cm) Height for 1 Person

22 in. (56cm) Wide Xtra-Deck® Allows Access Through Ceiling Panels

Guardrails on 3 Sides Slide Up to Meet Regulation Height with a 4th Side Swinging Gate Rail Enabling Both Hands to Freely Complete Work Tasks

Deploys or Stows in Seconds

Can be used with the Roll-Out Deck Extended or Retracted

Direct Electric Drive for Extended Duty Cycle, Smooth Control and Fewer Leak Points

Options

900W Inverter
Cold Weather Package
Upper Control Box Cover
Proactive Platform Safety System® (PPSS)
Leak Containment System® (LCS) – Patent Pending
Second Year Extended Warranty

Want a PDF of this brochure?

Download Brochure

Featured Options

Integrated Leak Containment System® (LCS)
Patent Pending
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and cordless power pack charging while eliminating the risks of cord management connected to a machine.
Pipe Rack
Factory designed and authorized attachment for safe pipe handling that keeps the platform clear and unobstructed.
