1330SE Micro


MEC’s broad range of Micro class slab scissor lifts features the smallest in the line at 13ft platform height
Lightweight

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 229 lbs., Max. Localized Pressure: 112 lbs.)

Ultracompact Design

Fits on most elevators and into tight work areas

Direct Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

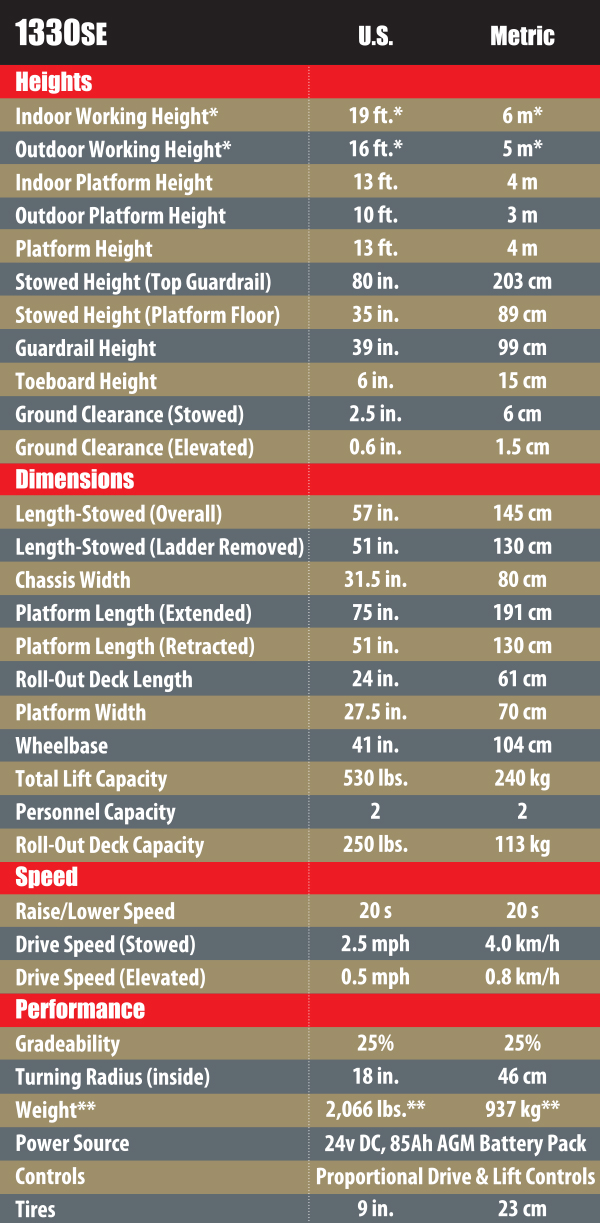

Product Specs


13 ft.
Platform Height
31.5 in.
Machine Width
57 in.
Machine Length
530 lbs.
Platform Capacity
2,066 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension with Incremental Locking Positions
Standard Swing Gate
Lanyard Attachments
110v Power to Platform

Performance
Direct Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
24v 85Ah AGM DC Electric Power (Maintenance-Free Batteries)
Battery Charge Indicator
Single 110v Receptacle at Chassis for Common Plug Connection for Battery Charger and Power to Platform

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Lift Control Orientation Designed to Mitigate Overhead Entrapment
Dedicated Compartment Protects Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Scissor Maintenance Lock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

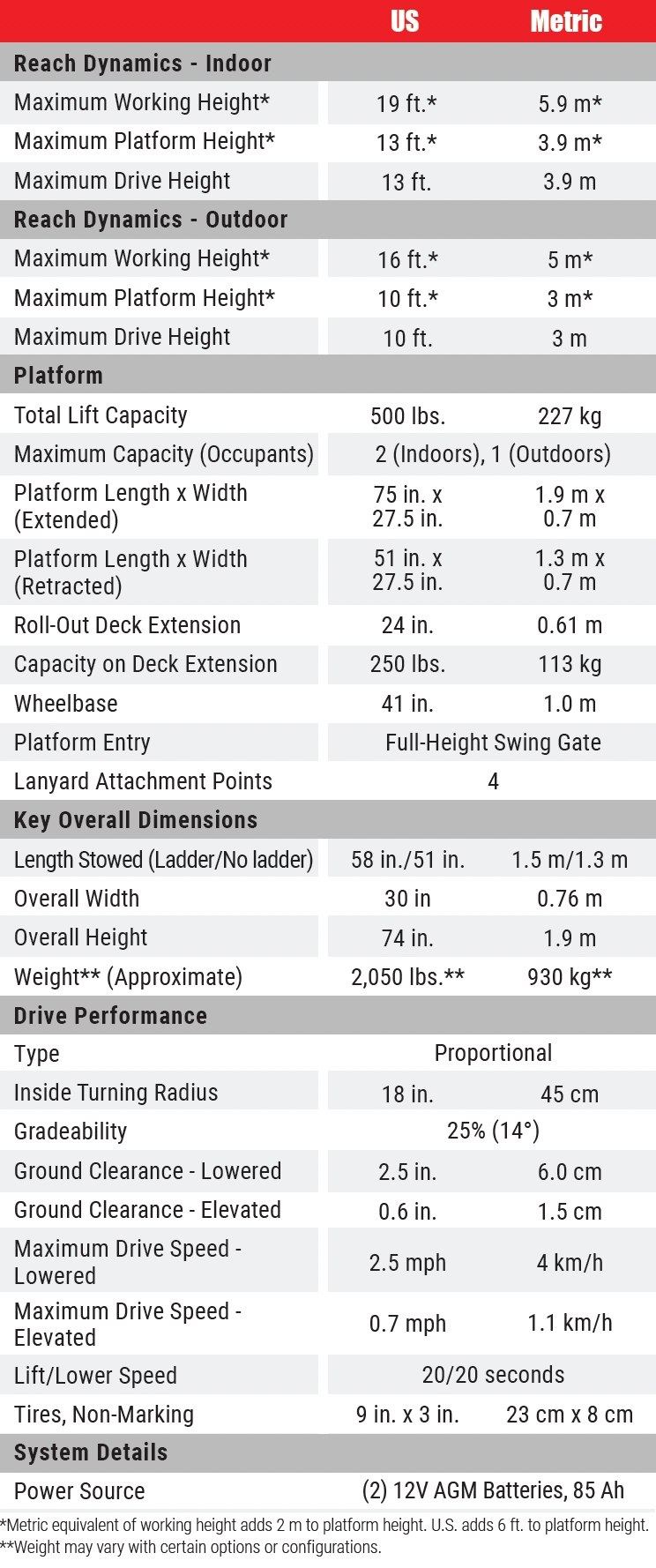

Misc 2021 charts for web jpgs OL Text

Highlights

13 ft. (4 m) Platform Height and 19 ft. (6 m) Working Height

Fits on Most Elevators with Shortest Overall Length and Low GVW (Gross Vehicle Weight)

24 in. (61 cm) Roll-Out Deck Extension with Incremental Lock Positions

Direct Electric Drive for Exceptional Duty Cycle, Smooth Control and Fewer Leak Points

2-Person Platform with 530 lb. (240 kg) Capacity

Fully Proportional Lift and Drive Controls

Ultra Compact Design Fits into Small and Tight Work Areas

Compact Size Yet Still Provides a Generous Work Area

Options

900W Inverter
Tool Tray
Pipe Rack
Proactive Platform Safety System® (PPSS)
Leak Containment System® (LCS) Patent Pending
Second Year Extended Warranty

Want a PDF of this brochure?

Download Brochure

Featured Options

Integrated Leak Containment System® (LCS)
Patent Pending
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and cordless power pack charging while eliminating the risks of cord management connected to a machine.
Pipe Rack
Factory designed and authorized attachment for safe pipe handling that keeps the platform clear and unobstructed.

Operator's Manual
Download PDF
Service & Parts Manual
Download PDF
Schematic Diagrams
Download PDF
Familiarization
Download PDF
