MME20


MEC’s vertical mast product line offers the industry’s prevailing 20ft platform height while delivering enhanced features for better productivity, accessibility and durability
Direct Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

Ultracompact Design

Fits on most elevators and into tight work areas with a true slide-out deck and low floor loading (Ground Pressure: 110 psi)

Full Featured Value

Standard steel platform, 350 lbs. capacity glide-out deck, lift-up entry gate and more

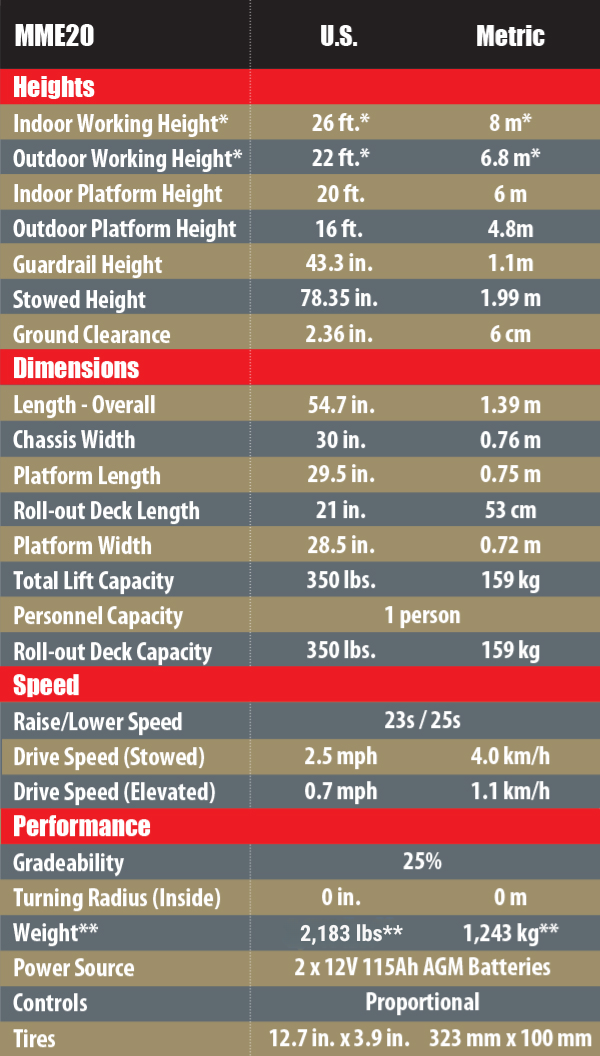

Product Specs


20 ft.
Platform Height
31.5 in.
Machine Width
55 in.
Machine Length
350 lbs.
Platform Capacity
2,183 lbs.
Machine Weight

Standard Features

Work Area
Roll-Out Deck Extension
Lanyard Attachments (2)
110v Power to Platform

Performance
Direct Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
AGM Batteries
Battery Charge Indicator
Single 110v Receptacle at Chassis for Common Plug Connection for Battery Charger and Power to Platform

Serviceability
Lubrication-Free Bearings
Easy Maintenance Access to Mechanical and Electrical Components
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Lift Control Orientation Designed to Mitigate Entrapment
Dedicated Compartments Protect Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Multiple Disc Brakes
Automatic Parking Brake

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060      Removable Upper Controls
Voltage-Compensating Fully-Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon

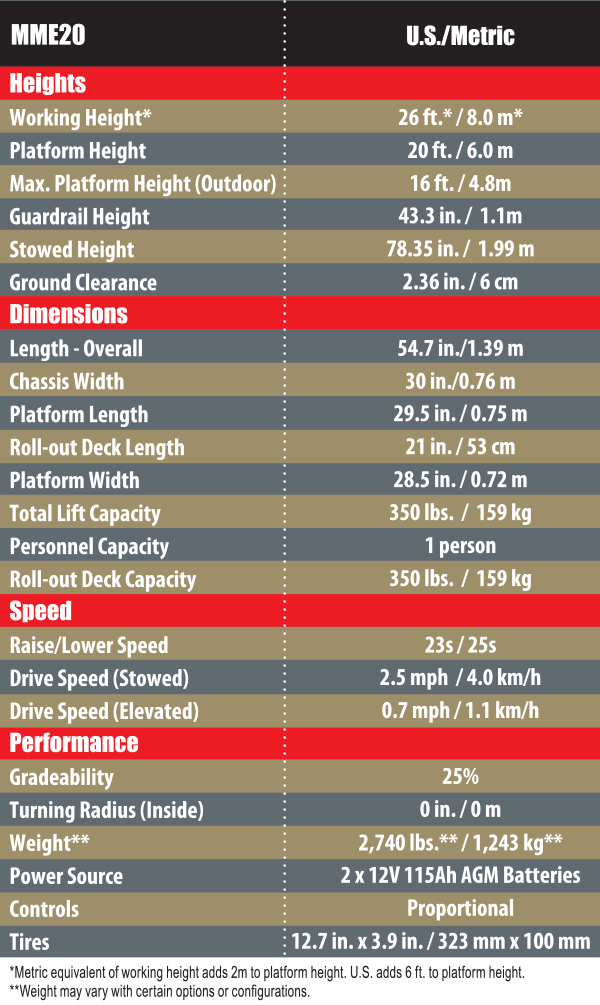

MME20 Chart 2022

Highlights

Up to 25 ft. (7.6 m) Platform Height Indoors and 31 ft (9.6 m) Working Height Indoors

Direct Electric Drive for Greater Duty Cycle and Smoother Controls

AGM Maintenance-Free Batteries Standard

Lifetime Roller Mast Construction for Maintenance-Free, Smooth Operation

Lowest Ground Pressure with Wide Non-Marking Tires

350 lbs. Unrestricted Platform Capacity

Glide-Out Deck Extension with Lift-Up Gate

Rugged Steel Platform and Gate Construction

Leak Containment System® (LCS) Patent Number 11,112,060



Optional Features

Proactive Platform Safety System® (PPSS)
900W Inverter
Cold Weather Package
Ceiling Grid Platform (22 in. x 22 in. / 56 cm x 56 cm)
Tool Tray
Second Year Extended Warranty

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Tool Tray
Conveniently located above the mast assembly to provide a place for tools and hardware without taking up space in the work area of the platform.
