3346SEAC Compact


MEC’s full line of slab scissor lifts features the industry hallmark 33ft platform height compact scissor
AC Electric Drive

Exceptional duty cycle with standard maintenance free batteries and higher residual value

Sheet Material Tray - U.S. Patent #8,678,135

Factory designed and authorized for safe handling outside the platform

Full-Featured Design

High spec standard features include power-to-platform, on-board diagnostic and more

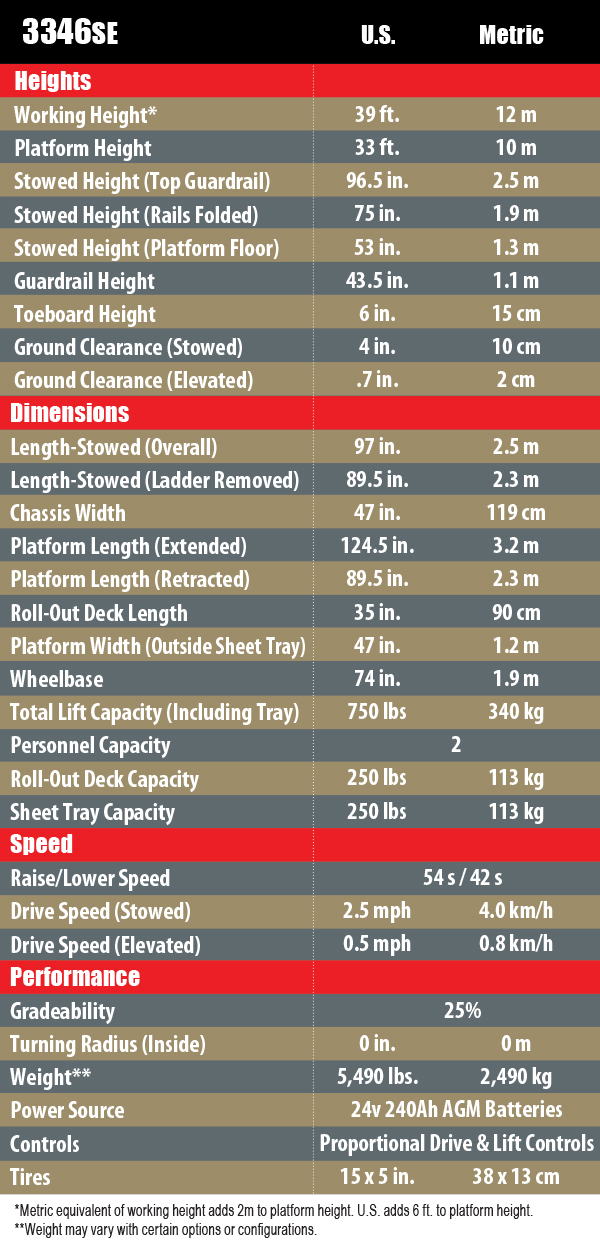

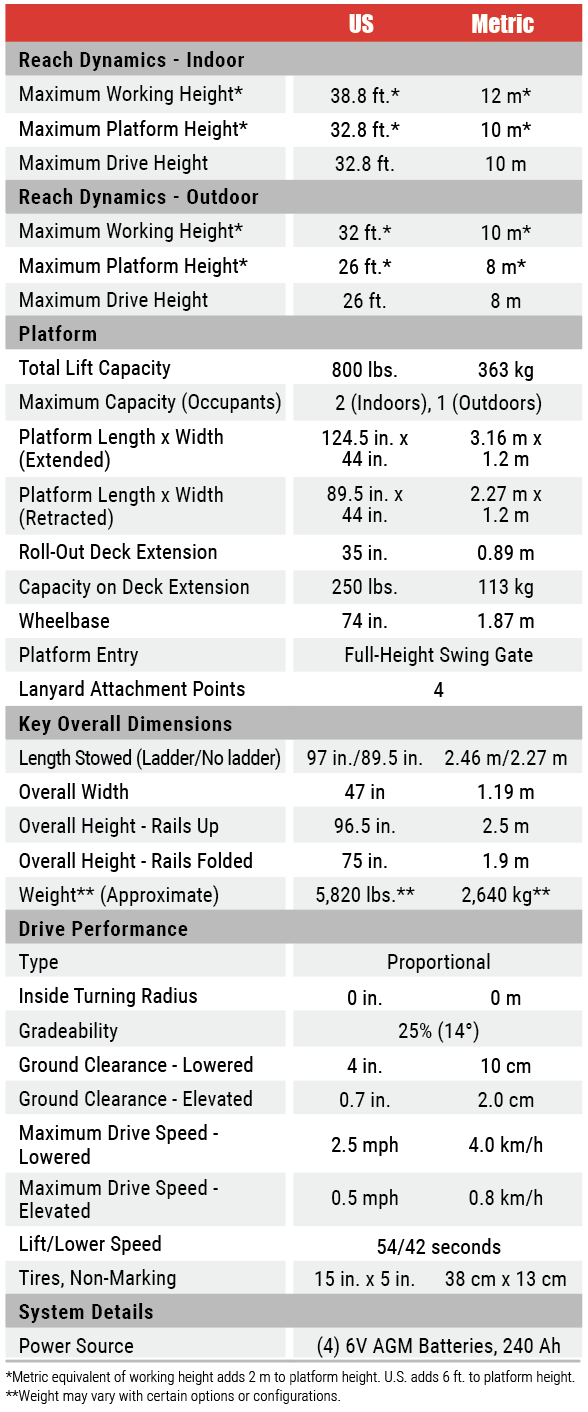

Product Specs


33 ft.
Platform Height
47 in.
Machine Width
97 in.
Machine Length
800 lbs.
Platform Capacity
5,670 lbs.
Machine Weight

Standard Features

Work Area
Standard Integrated Sheet Material Tray Designed and Approved by the Manufacturer***Indoor Use Only – U.S. Patent # 8,678,135
Roll-Out Deck Extension with Incremental Locking Positions
Full Height Swing Gate
Lanyard Attachments (4)

Performance
AC Electric Drive
Fully Proportional Drive and Lift Controls

Power
24v 220Ah AGM Batteries
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in a Slide-Out Tray
Logically Grouped Components and Numbered Wiring for Easy Reference

Safety
Dedicated Compartment Protects Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Scissor Maintenance Lock
Multiple Disc Brakes

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060      Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pockets
Flashing Beacon (Continuous)

3346SEAC 600 pix wide 4-2022

Highlights

38.8 ft. (12 m) Working Height Indoors; 32 ft. (10 m) Working Height Outdoors

AC Electric Drive for Extended Duty Cycles and Faster Drive Speeds

Standard Integrated Sheet Material Tray Allows 250 lbs. (113 kg) to be Stored and Lifted Outside the Platform

Compact Maneuverability from Front Wheel Drive and Steer with Zero Inside Turn Radius

Drivable at Full Height

Fully Proportional Lift and Drive Controls

Standard Swing Gate

Easy Serviceability with Swing Out Battery and Power Module Trays

2-Person Platform (Indoors)/ 1-Person Platform (Outdoors) with 5,670 lb. (2,570 kg) Capacity Maximize Productivity with Electric Drive and 250 lbs. Capacity Sheet Material Tray

Options

900W Inverter                                                                                                              Cold Weather Package                                                                                    Second Year Extended Warranty                                                                              Upper Control Box Supplementary Guard
Tool Tray
Pipe Rack

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
Operator's Manual
Download PDF
Service & Parts Manual
Download PDF
Schematic Diagrams
Download PDF
Familiarization
Download PDF
