2632SEAC Slim

MEC’s full line of slab scissor lifts features the industry hallmark 26ft platform height slim scissor
AC Electric Drive

Exceptional duty cycle with standard maintenance free batteries and higher residual value

Sheet Material Tray - U.S. Patent #8,678,135

Factory designed and authorized for safe handling outside the platform

Full-Featured Design

High spec standard features include power-to-platform, on-board diagnostic and more

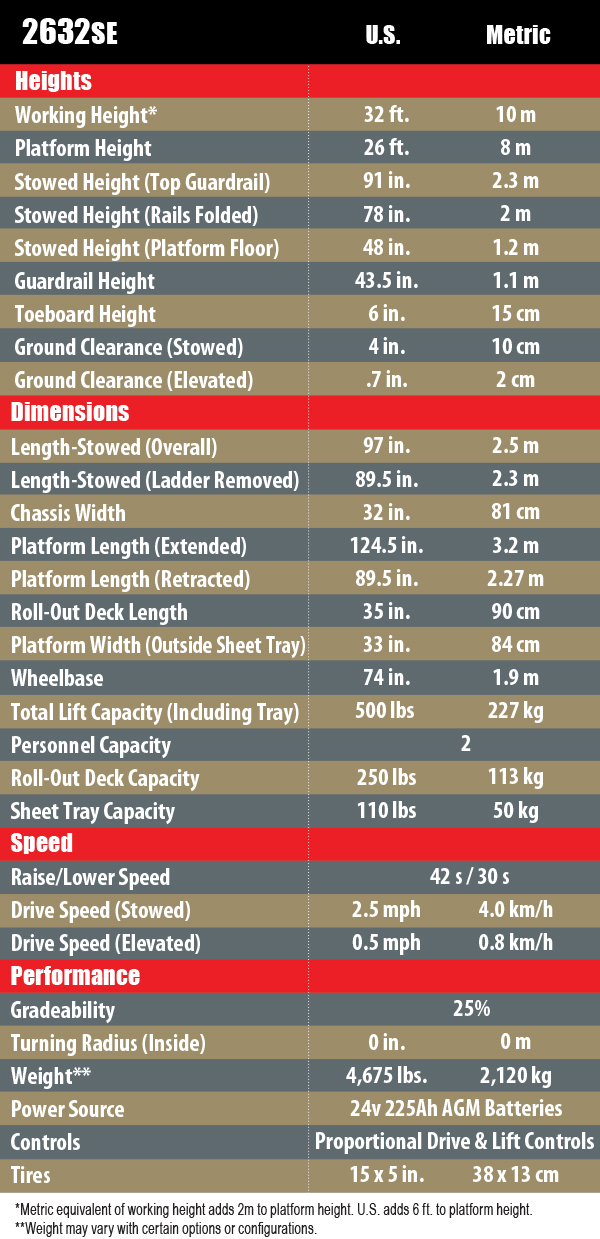

Product Specs

26 ft.
Platform Height
32 in.
Machine Width
97 in.
Machine Length
550 lbs.
Platform Capacity
4,870 lbs.
Machine Weight

Standard Features

Work Area
Standard Integrated Sheet Material Tray Designed and Approved by the Manufacturer***Indoor Use Only-U.S. Patent #8,678,135
Roll-Out Deck Extension with Incremental Locking Positions
Standard Swing Gate
Lanyard Attachments (4)

AC Electric Drive
Fully Proportional Drive and Lift Controls

Up to 25% Gradeability

Maintenance-Free Batteries
Battery Charge Indicator

Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in a Slide-Out Tray
Logically Grouped Components and Numbered Wiring for Easy Reference

Dedicated Compartment Protects Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Scissor Maintenance Lock
Multiple Disc Brakes

Other Features
Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Fold-Down Guardrails
Hour Meter
Machine Tie Downs
Non-Marking Tires
All Motion Alarm
Fork Lift Pocket                                              Flashing Beacon (Continuous)

2632SEAC 600 pix wide 4-2022


AC Electric Drive for Extended Duty Cycles, Smoother Controls and Faster Drive Speeds

Standard Integrated Sheet Material Tray Allows 110 lbs. (50 kg) to be Stored and Lifted Outside the Platform

Compact Maneuverability from Front Wheel Drive and Steer with Zero Inside Turn Radius

Drivable at Full Height

Fully Proportional Lift and Drive Controls

Standard Swing Gate

Easy Serviceability with Swing Out Battery and Power Module Trays


900W Inverter
Second Year Extended Warranty                                                                            Upper Control Box Supplementary Guard                                                              Cold Weather Package                                                                                              Tool Tray                                                                                                                      Pipe Rack                                                                                                                    Leak Containment System (LCS) – Patent Number 11,112,060

Want a PDF of this brochure?


Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
