66-RJ

66 foot telescopic boom with multi-directional rotating jib, robust platform, weighing less than 29,000 pounds and no foot switch required.
Multi-Directional Jib with High-Capacity Platform

Precise positioning with 135° vertical and 120° horizontal rotation at up to 900 lbs. capacity

4-Wheel Steer

Unmatched Job Site maneuverability with coordinated and crab steering modes

Powerful Rough Terrain Performance

4-Wheel Drive, Differential Axle with 7° axle oscillation

Want a PDF of this brochure?

DOWNLOAD pRODUCT BROCHURE

Product Specs

66 ft.
Platform Height
8 ft. 2 in.
Machine Width
33 ft. 9 in.
Machine Length
900 lbs.
Platform Capacity
28,528 lbs.
Machine Weight
66-RJ

Standard Features

Work Area
90” (2.3 m) Work Platform
3-Sided Entry with Swing Gate
600 lb. (272 kg) Platform Capacity Unrestricted/900 lb. (408 kg) Restricted Platform Capacity
180° Platform Rotation
135° Vertical Jib Range of Motion
120° Horizontal Jib Rotation
Power to Platform

Performance
360° Continuous Turntable Rotation
4WD Drive System
45% Gradeability
Self-Leveling Platform
Two-Speed Drive
72 ft. (22.2 m) Working Height
Full Drive Height

Power
Kubota Tier 4 Final Turbo Diesel

Control System
Triple Joystick Interface
Fully Proportional Multi-Function Controls

Safety
Emergency Shut-Off on Platform & Chassis
Auxiliary Power Unit
Multi-Axis Tilt Sensor
Tilt Alarm and Horn
All Motion Alarm
Four Wheel SAHR Braking System
Automotive Horn
Engine Shut Down Protection

Other Features
Hour Meter
Machine Tie-Downs and Lifting Lugs
Lanyard Attachments
Standard Foam Filled Rough Terrain Tires
On-Board Diagnostics
Flashing Beacon (Continuous)

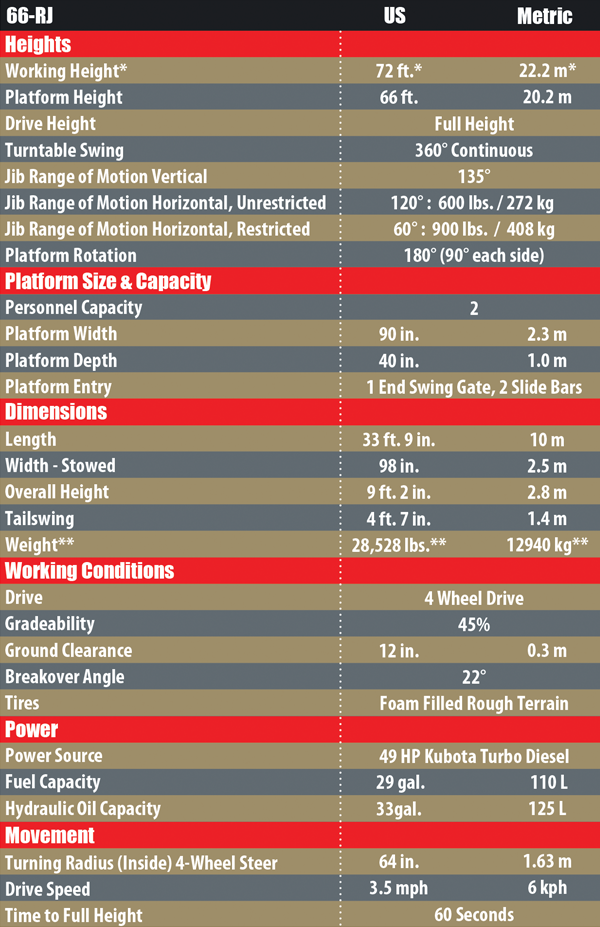

66-RJ_Chart_R2_600_px_wide

Highlights

72 ft. (22.2 m) Working Height with Standard 6 ft. (1.9 m) Multi Direction Jib with 135° Vertical and 120° Jib Range of Motion
Rotating Jib for Communication Tower Access
56 ft (17 m) of Outreach
4-Wheel Steer/Crab Steer/2-Wheel Steer
Dual Capacity – 600 lbs. (272 kg) Unrestricted, 900 lbs. (408 kg) Restricted
Approximately 28,500 lbs. (12900 kg) –
Foam Filled Rough Terrain Tires

Options
Platform Control Box Cover
7.5 kW Welder Ready Generator
12 kW Welder Ready Generator
Platform Work Lights
Glazier Package
Cold Weather Package
Arctic Package                                                                                Proactive Platform Safety System® (PPSS)
Second Year Extended Warranty
Xtra Deck® (Two Maximum)
External Platfrom Harness

Want a PDF of this Sell Sheet?

DOWNLOAD Sell Sheet

Featured Options
Glazier Package
Robust one-piece tray design that is quick and easy to install, remove and store when not in use. Meets Glazier needs with one long continuous tray that is lightweight, strong, safe and high visibility.
Welder Ready Generator Package
Engineered based on a Harrison hydraulically driven 7500-watt, 208-volt 3 phase generator and specifically designed pump to run the generator (not off the drive pump) providing a simple, safe and reliable system. Control system automatically drops out the generator when machine movement is used and re-engages once movement is complete to save overspeed damage to the generator.
Xtra Deck
MEC’s PPSS option senses an overhead object with two ultrasonic sensors located behind the operator. With these high-tech sensors, the operators are proactively warned of an overhead hazard to mitigate collision and entrapment.
