Micro26®AE


MEC’s broad range of Micro class slab scissor lifts features the tallest in the line at 26ft platform height with Xtra-Deck® innovation
Lightweight

Micro Scissor design with true slide-out deck and low floor loading (Uniform Pressure: 285 lbs., Max. Localized Pressure: 156 lbs.)

Ultracompact Design

Fits on most elevators and into tight work areas

AC Electric Drive

Exceptional duty cycle with standard AGM batteries and higher residual value

Want a PDF of this brochure?

DOWNLOAD BROCHURE

Product Specs


26 ft.
Platform Height
32 in.
Machine Width
74 in.
Machine Length
550 lbs.
Platform Capacity
4,450 lbs.
Machine Weight

Standard Features

Work Area
Roll Out Deck Extension with Incremental Locking Positions
Standard Full Height Swing Gate
Lanyard Attachments (2)                                                                                          Xtra Deck® Additional 20-Inch Height Platform Patent Pending

Performance
AC Electric Drive
Fully Proportional Drive and Lift Controls
Up To 25% Gradeability

Power
240Ah AGM Batteries
Battery Charge Indicator

Serviceability
Lubrication-Free Scissor Bearings
Easy Maintenance Access to Mechanical and Electrical Components in Swing Out Trays
Parking Brake Release Switch for Towing

Safety
Lift Control Orientation Designed to Mitigate Entrapment
Dedicated Compartments Protect Electrical and Hydraulic Components
Emergency Shut-Off at Platform and Lower Controls
Non-Skid Metal Deck Construction
Descent Alarm
Drive Speed Interlock
Multi-Axis Tilt Sensor
Multiple Disk Brakes
Scissor Maintenance Lock
Automatic Parking Brakes
Automatic Pothole Protection                                                                               Xtra Deck® Solution to Standing on the Midrails Hazard

Other Features
Leak Containment System® (LCS) Patent Number 11,112,060                          Removable Upper Controls
Voltage-Compensating Fully Automatic Battery Charger
Hour Meter
Machine Tie Downs
Non-Marking Tires
All-Motion Alarm
Fork Lift Pockets
Flashing Beacon

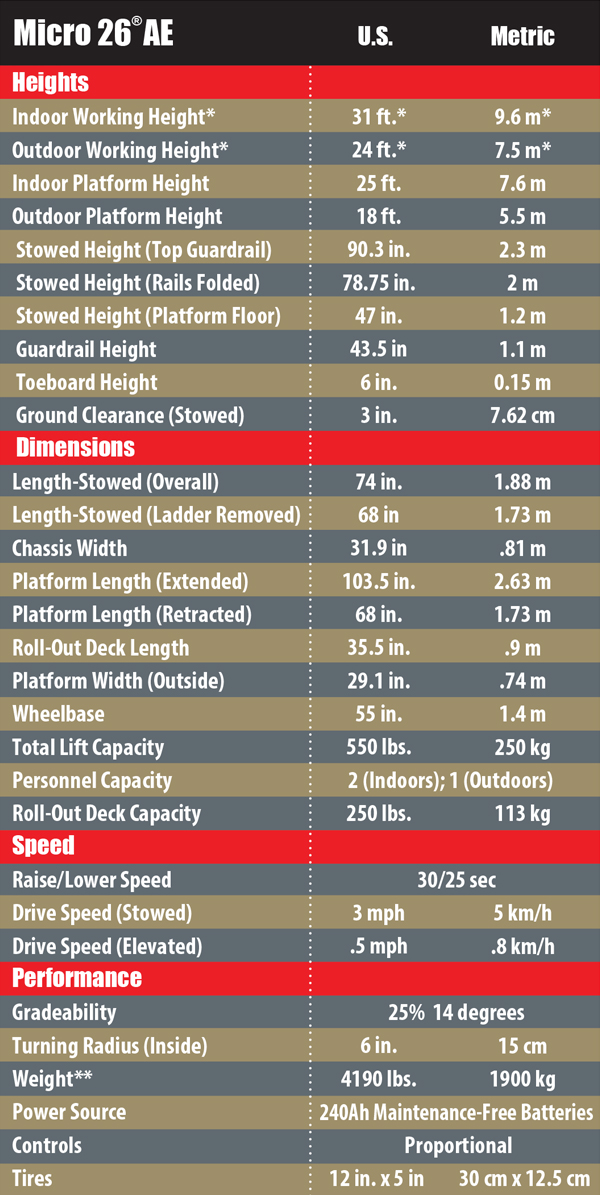

600 px wide PNG of Micro26-XD Chart for website

Highlights

Compact Size Almost 2 ft. (60 cm) Shorter Than Other 26 ft. (7.6m) Lifts

36 in. (90 cm) Roll-Out Deck Extension with Incremental Lock Positions

AC Electric Drive for Extended Duty Cycle, Smoother Control and Faster Drive Speed

Spacious 2-Person Platform (Indoors)/1-Person Platform (Outdoors) with 500 lb. (227 kg) Capacity

Driveable at Full Height

Fully Proportional Lift and Drive Controls

Pull-Down Xtra Deck Gives Additional 20 in. (50cm) Height for 1 Person

Options

900W Inverter
Tool Tray
Cold Weather Package
Second Year Extended Warranty                                                                               Pipe Rack                                                                                                                     Upper Control Box Suppleme

Want a PDF of this brochure?

DOWNLOAD BROCHURE



Featured Options

Integrated Leak Containment System® (LCS) Patent Number 11,112,060
Contain leaks and protect flooring while not interfering with safe machine operation
900W Inverter
On board AC power at the platform for power tools and lithium power pack charging while avoiding the risks and limitations of overhanging power cords
Pipe Rack
Factory designed and authorized device for safe pipe handling that keeps the platform clear and unobstructed
Operator's Manual
Download PDF
Familiarization
Download PDF
