Micro 26®-XD+

Everything operators rely on in the Micro 26®+, with MEC's industry-first Xtra-Deck®, to reach into the tightest overhead spaces.

More Capacity, Less Interruption:

A 600 lb platform capacity and 300 lb deck extension support the tools, materials, and workers needed to get the job done at height without interruption.

More Runtime, Greater Precision:

Proportional lowering provides precise, smooth positioning at height while recovering energy to deliver 22% greater duty cycles.

Reach Further with Xtra-Deck®:

The first of its kind in the industry, MEC's Xtra-Deck® raises operators an additional 20 inches into tight overhead spaces with our leading 300 lb capacity.

Want a PDF of this brochure?

DOWNLOAD BROCHURE

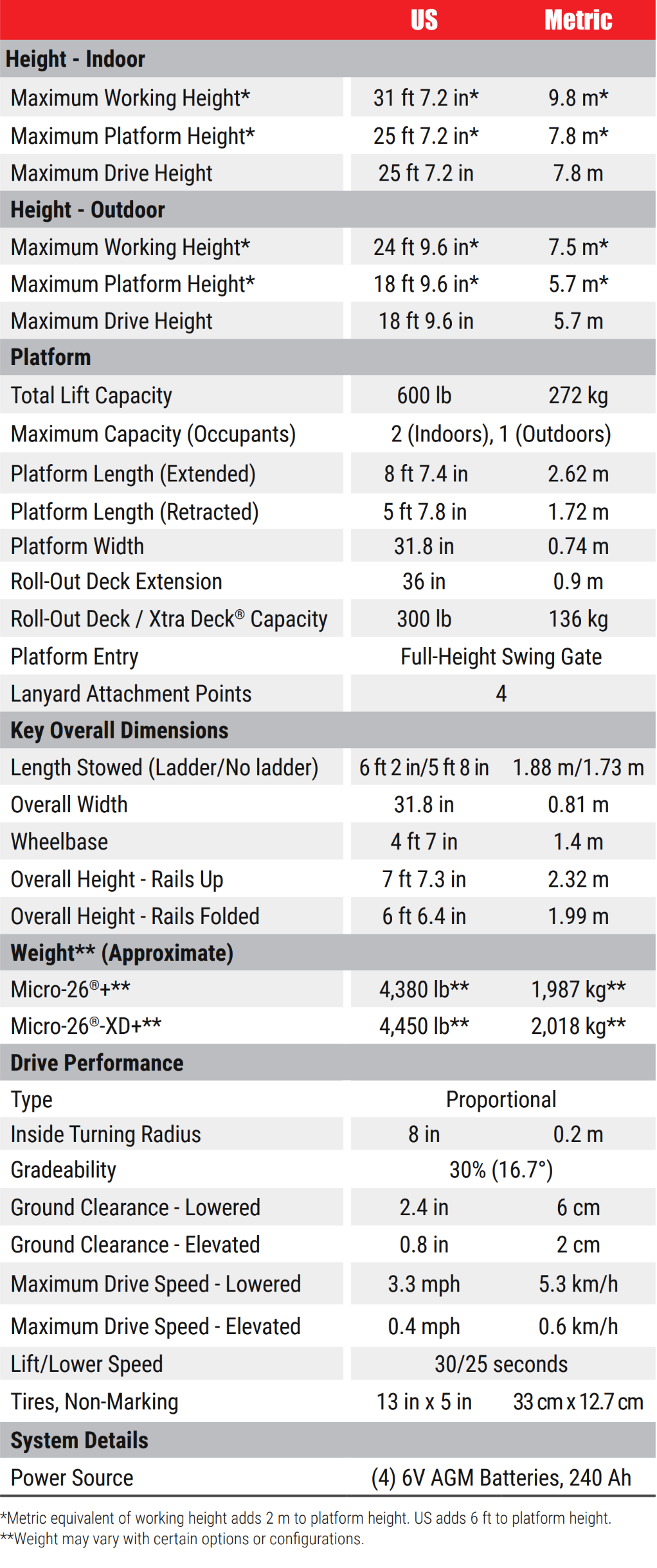

Product Specs

25 ft 7.2 in

Platform Height

31.8 in

Machine Width

6 ft 2 in

Machine Length

600 lb

Platform Capacity

4,450 lb

Machine Weight

Standard Features

Performance

Front wheel AC direct-electric drive
Fully proportional drive & lift controls

Safety

Entrapment mitigation designed into controls
Active pothole protection
Emergency shut-off at platform & lower controls
Non-skid metal deck construction
Descent & all-motion alarms
Flashing beacon
Drive speed interlock
Multi-axis tilt sensor
Multiple disc brakes
Scissor maintenance lock
Automatic parking brake

Serviceability

Leak Containment System® (LCS) Patent #11,112,060
Lubrication-free scissor bearings
Battery charger
Slide-out service tray
Onboard diagnostics — no analyzer tool required
Hour meter
Machine tie down points

Other Features

Self-closing, platform gate with magnetic latch
Theft deterrent control box bracket
Lockable battery disconnect
Side & rear forklift pockets

Highlights

The industry’s most compact and productive 26’ Micro scissor

Drives at full height lift, no outriggers required
600 lb capacity and 300 lb deck extension capacity
Proportional descent provides smoother positioning while regenerating energy for 22% greater duty cycles
Improved non-marking rubber tire compound for longer wear and extended tire life
4-in-1 motor controller reduces system connections

Xtra-Deck®

Platform within the platform to reach up 20″ into tight overhead spaces
Integrated into the unit, stows out-of-the-way
300 lb Xtra-Deck capacity

Options & Accessories

Upper Control Box Guard
1,000W Inverter
Tool Tray
Cold Weather Package
Proactive Platform Safety System® (PPSS)
Perimeter Laser Lighting
Anti-Fatigue Mat
Pipe Racks
Extended Warranty
