PLUS Series
ELECTRIC SCISSOR LIFTS
overloading stoppages, extend operation on a single charge, and
make it easier for crews to keep working.
ELECTRIC SCISSOR LIFTS
reduce overloading stoppages, extend operation on a single
charge, and make it easier for crews to keep working.
BENEFITS
01
Higher Platform Capacities
Maximum platform capacities increase up to 100 lbs. more per model, with deck extension and Xtra-Deck® capacities rising from 250 to 300 lbs. — reducing work stoppages from overload systems.
02
More Time Per Charge

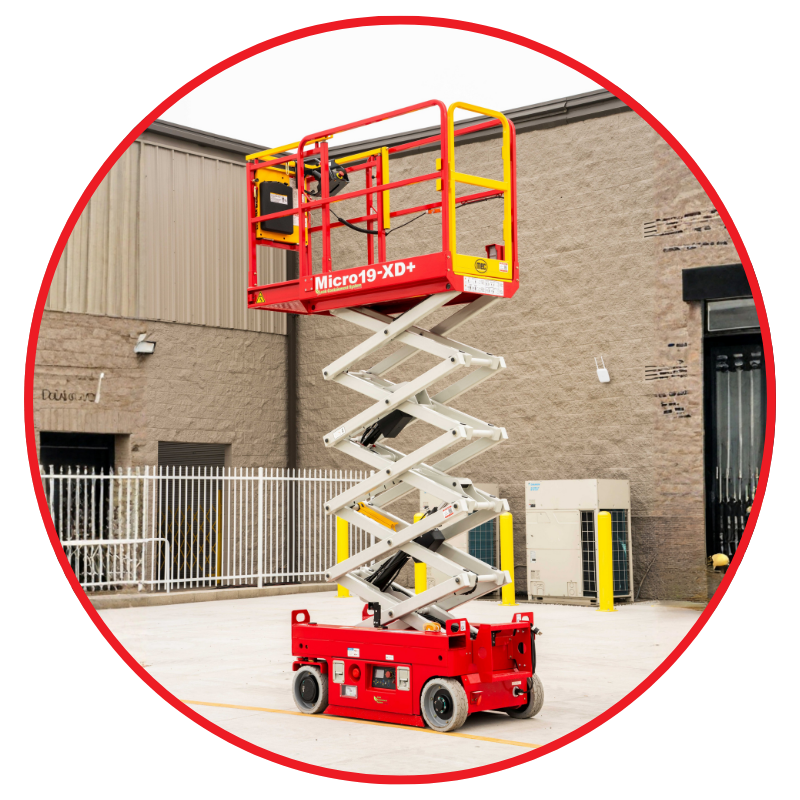

New high-efficiency PMSR AC motors recapture 30% of lifting energy, increasing duty cycles by 22% for models 26 ft. or higher. Micro 19+ models gain 8% via new AC front wheel drive brushless motors.
03
Proportional Lowering
New PMSR AC+ motors on the six tallest models enable proportional lowering — providing smoother, controlled descent and more precise working-height positioning.
04
Faster Positioning in Tight Interiors
Improvements to maneuverability and responsiveness reduce time spent jockeying for position, especially in high-density indoor environments.
05
Less Frustration in Daily Use
A simplified gate entry with magnetic latching, a larger control box screen, and thicker membrane switches all reduce friction during every shift.
Preliminary Key Specifications
Plus Series Models
All models feature new standard features and enhanced performance upgrades.
| Models | Max Platform Height | Capacity (lb.) Overall / Deck | Length Stowed | Overall Width | Machine Weight |
|---|---|---|---|---|---|

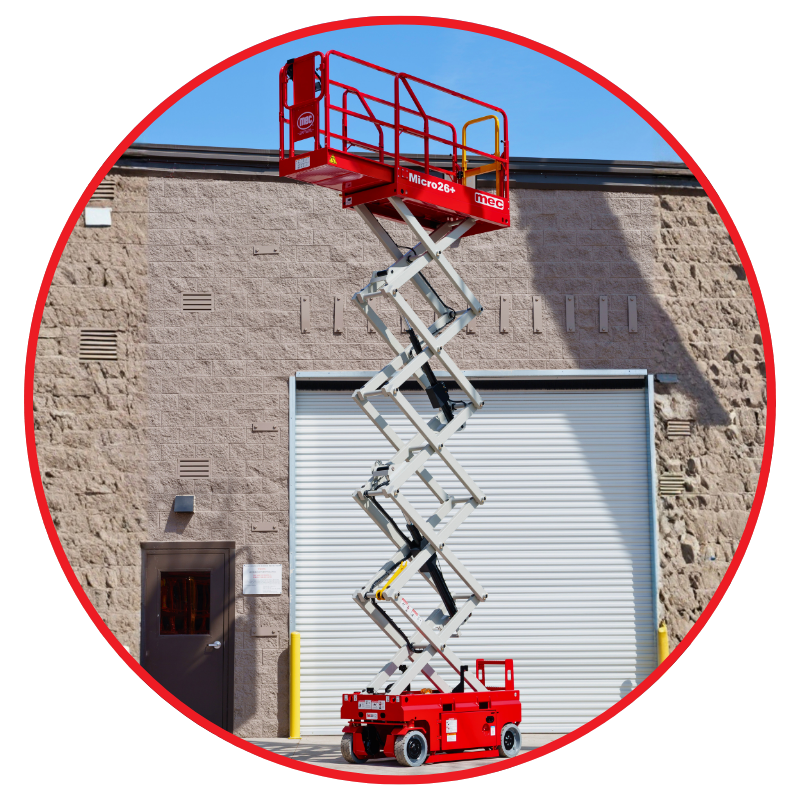

| Micro 26+ | 26 ft. | 600 / 300 | 74 in. | 32 in. | 4,450 lb |

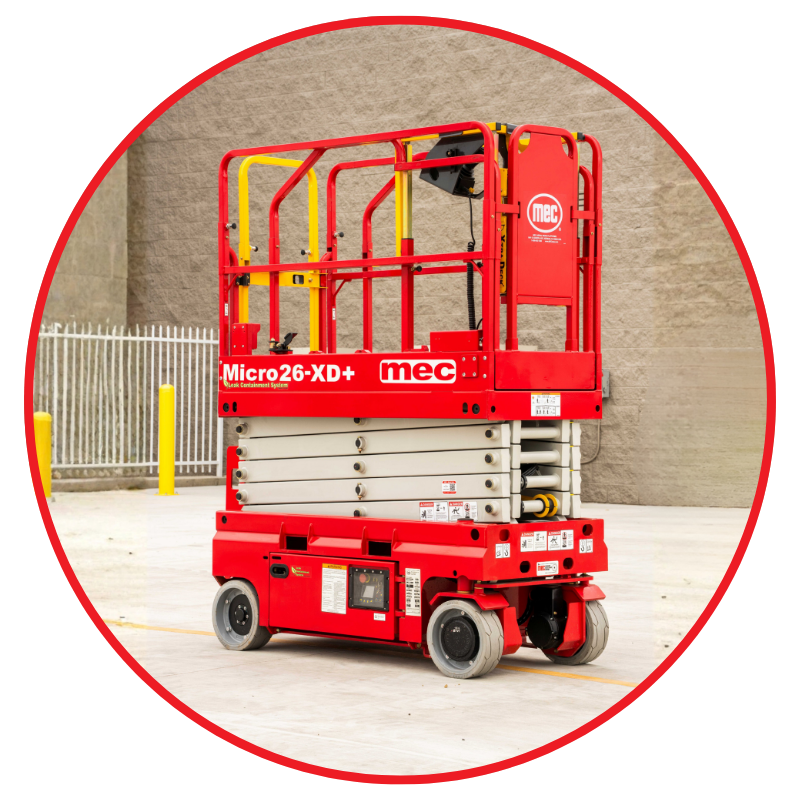

| Micro 26-XD+ | 26 ft. | 600 / 300 | 74 in. | 32 in. | 4,450 lb |

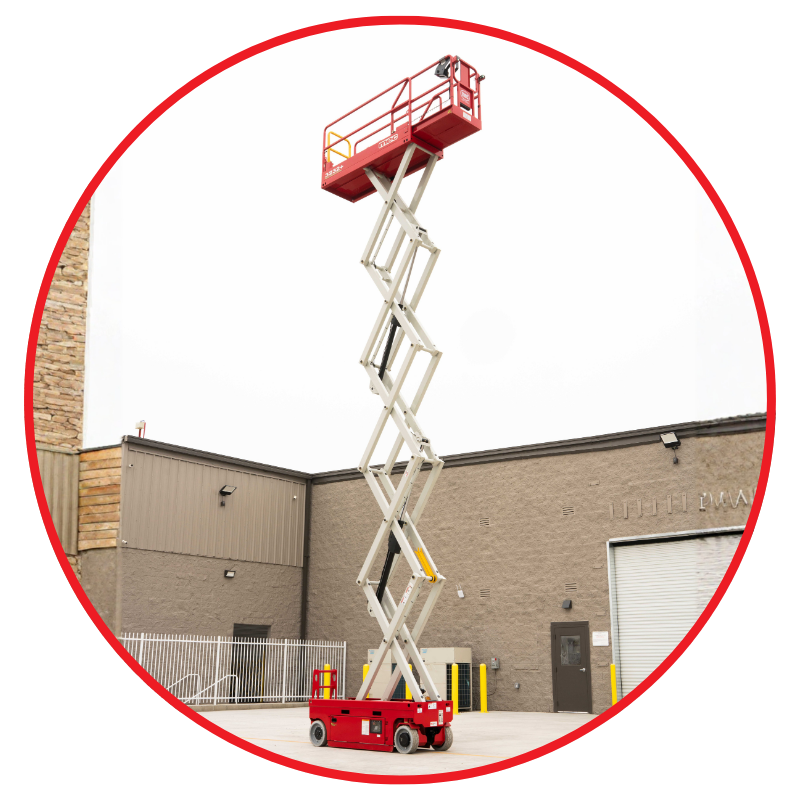

| 3232+ | 32 ft. | 600 / 300 | 97 in. | 32 ft. 7 in. | 7,145 lb |
| 3346+ | 33 ft. | 900 / 300 | 97 in. | 46 in. | 6,000 lb |
| 4046+ | 40 ft. | 800 / 300 | 98 in. | 46 in. | 7,200 lb |
| 4555+ | 45 ft. | 800 / 300 | 112 in. | 55 in. | 7,760 lb |
| *1930+ | 19 ft. 4 in. | 600 / 300 | 73 in. | 30 in. | 3,440 lb |
| *2632+ | 26 ft. | 600 / 300 | 97 in. | 32 in. | 4,870 lb |
*Canada only
Specifications are preliminary and subject to change. Contact MEC for details.

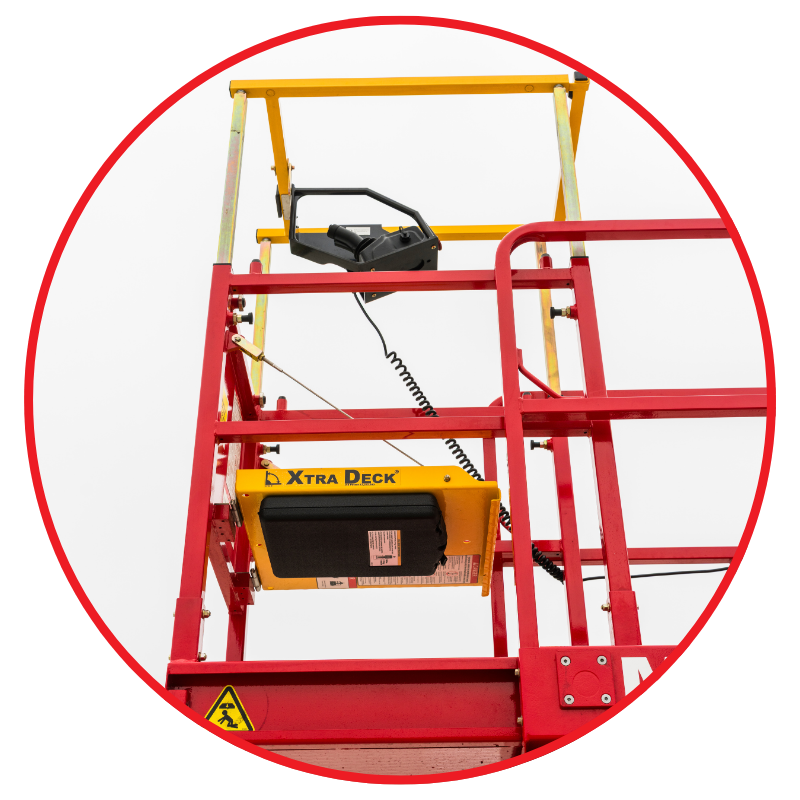

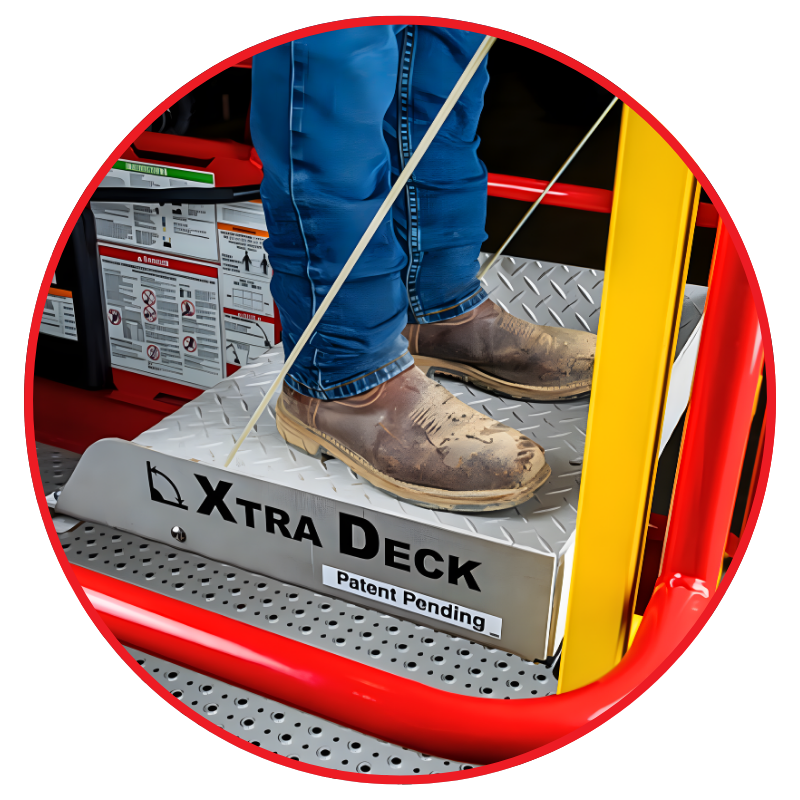

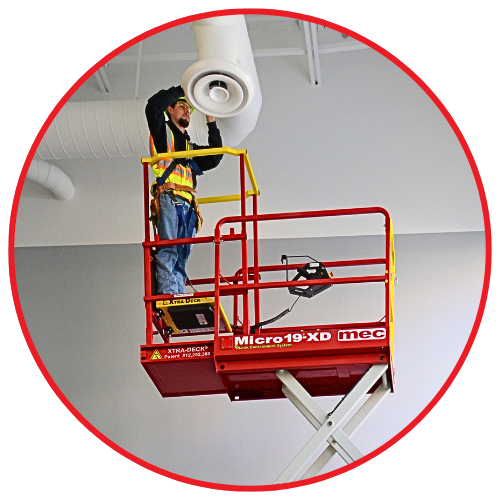

The MEC® Xtra-Deck® stands out from the rest – it deploys in less than 10 seconds and doesn’t de-rate the platform capacity.

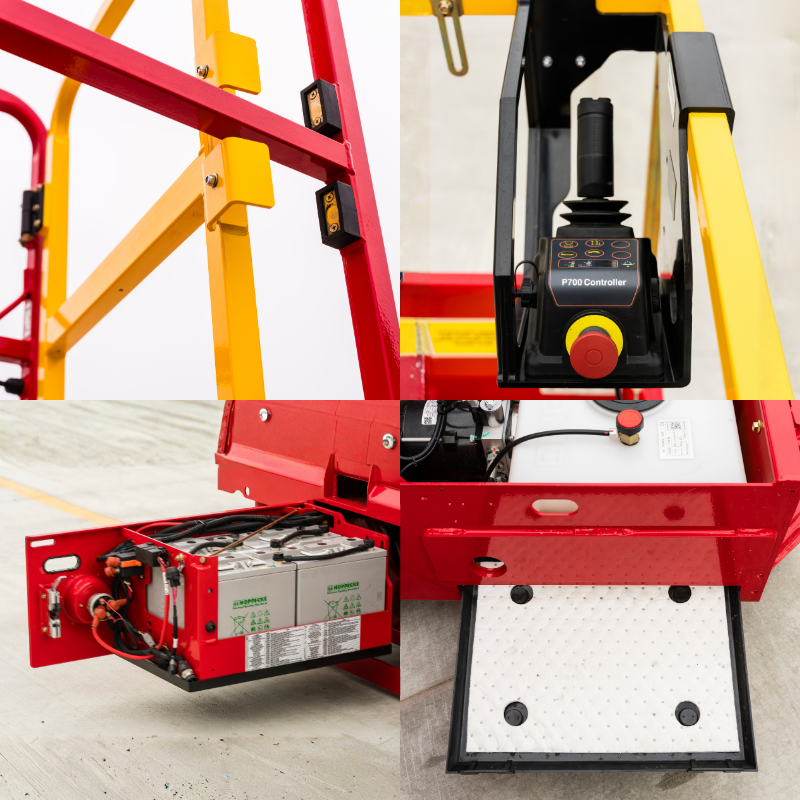

Standard Features
New — Theft Deterrent Control Box Bracket
New — Lockable Battery Disconnect
New — Magnetic Gate Latch
Leak Containment System®
AGM Maintenance-Free
Batteries Single Charging
Power-to-Platform Outlet
