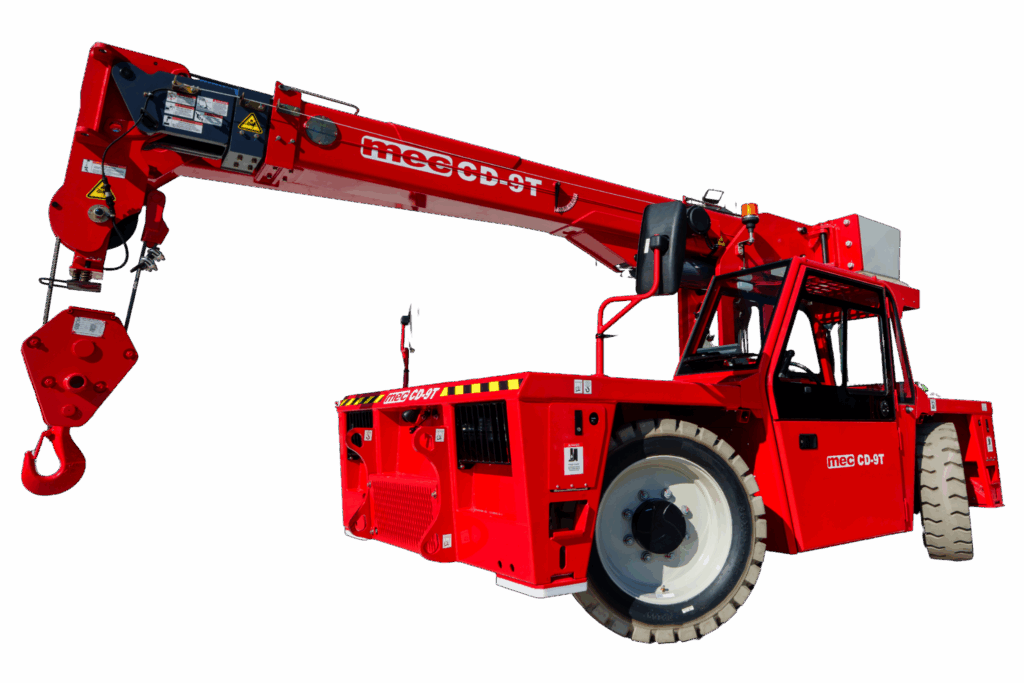

CD-9T
DECK CRANE
DECK CRANE
KEY FEATURES
BUILT DIFFERENT. BUILT BETTER.
360° Visibility
A chassis‑mounted, side‑placed engine and clean boom design minimize obstructions, giving operators clearer sightlines around the jobsite.

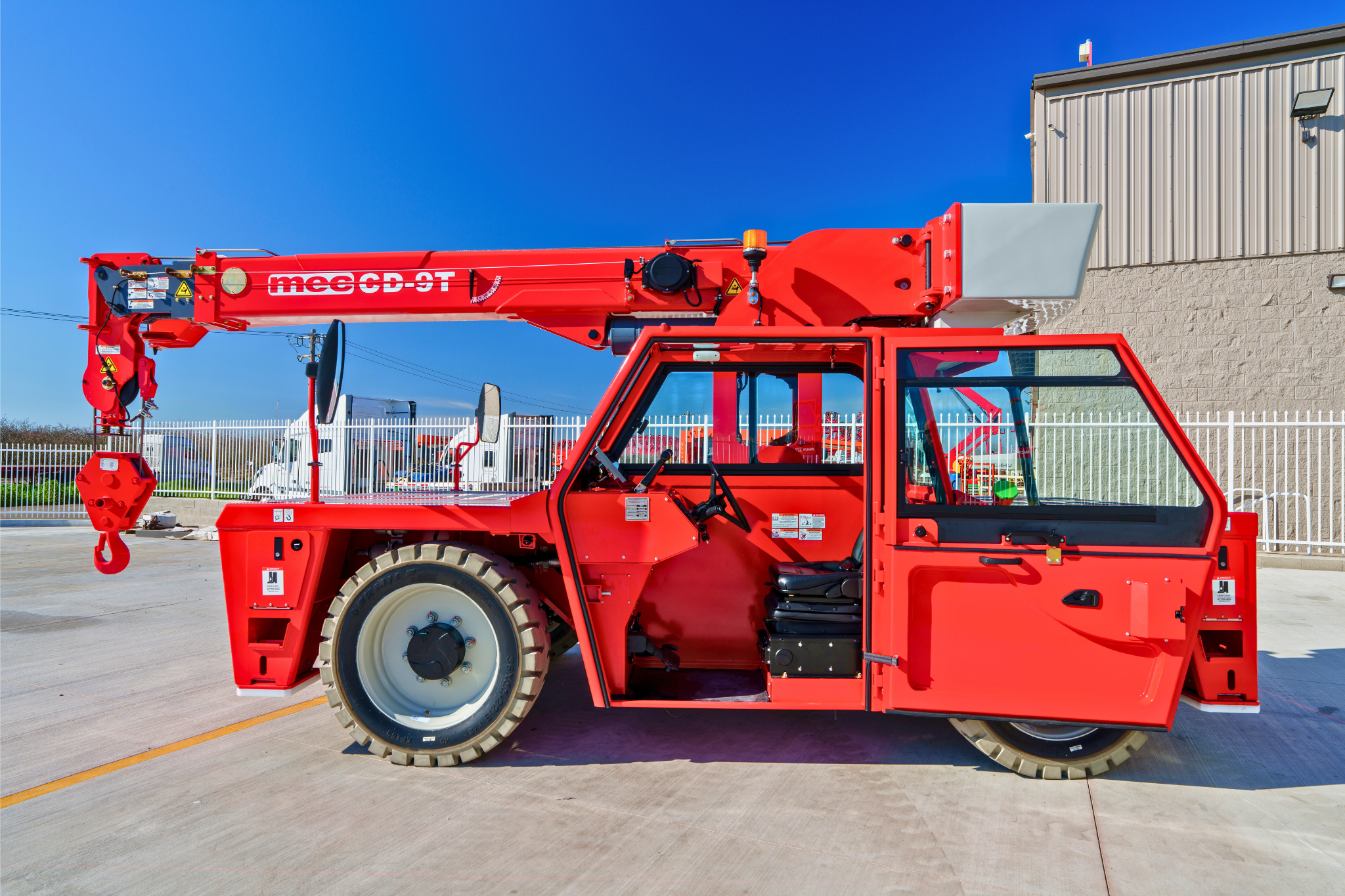

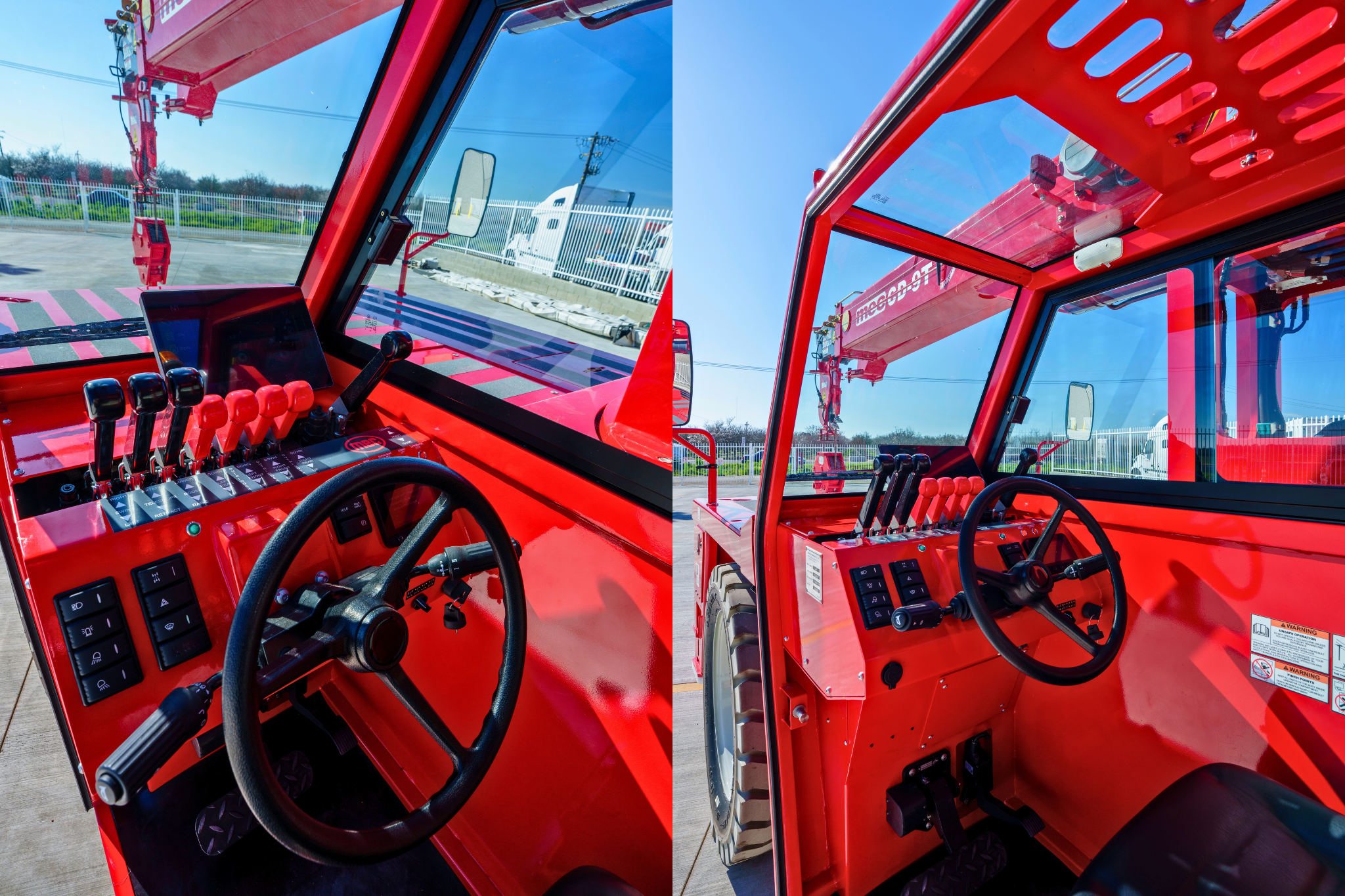

Comfortable, Spacious Cab
An enclosed comfort cab with 25% more interior volume than competitive models, plus standard A/C, heat, and a suspension seat to reduce fatigue.

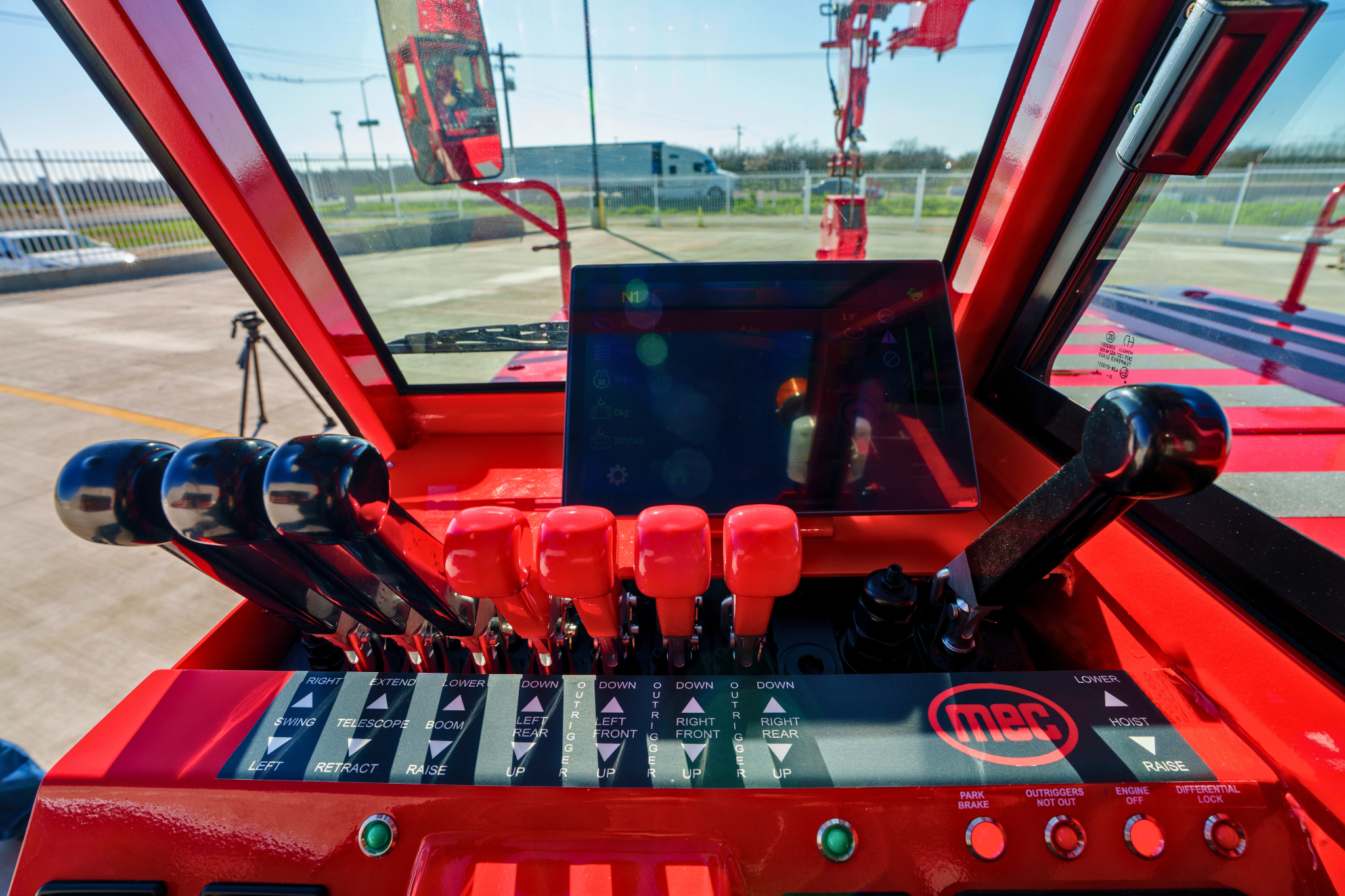

Smooth, Confident Controls
Responsive controls paired with a hydrostatic 4WD system provide smoother positioning and better maneuverability in tight work areas.

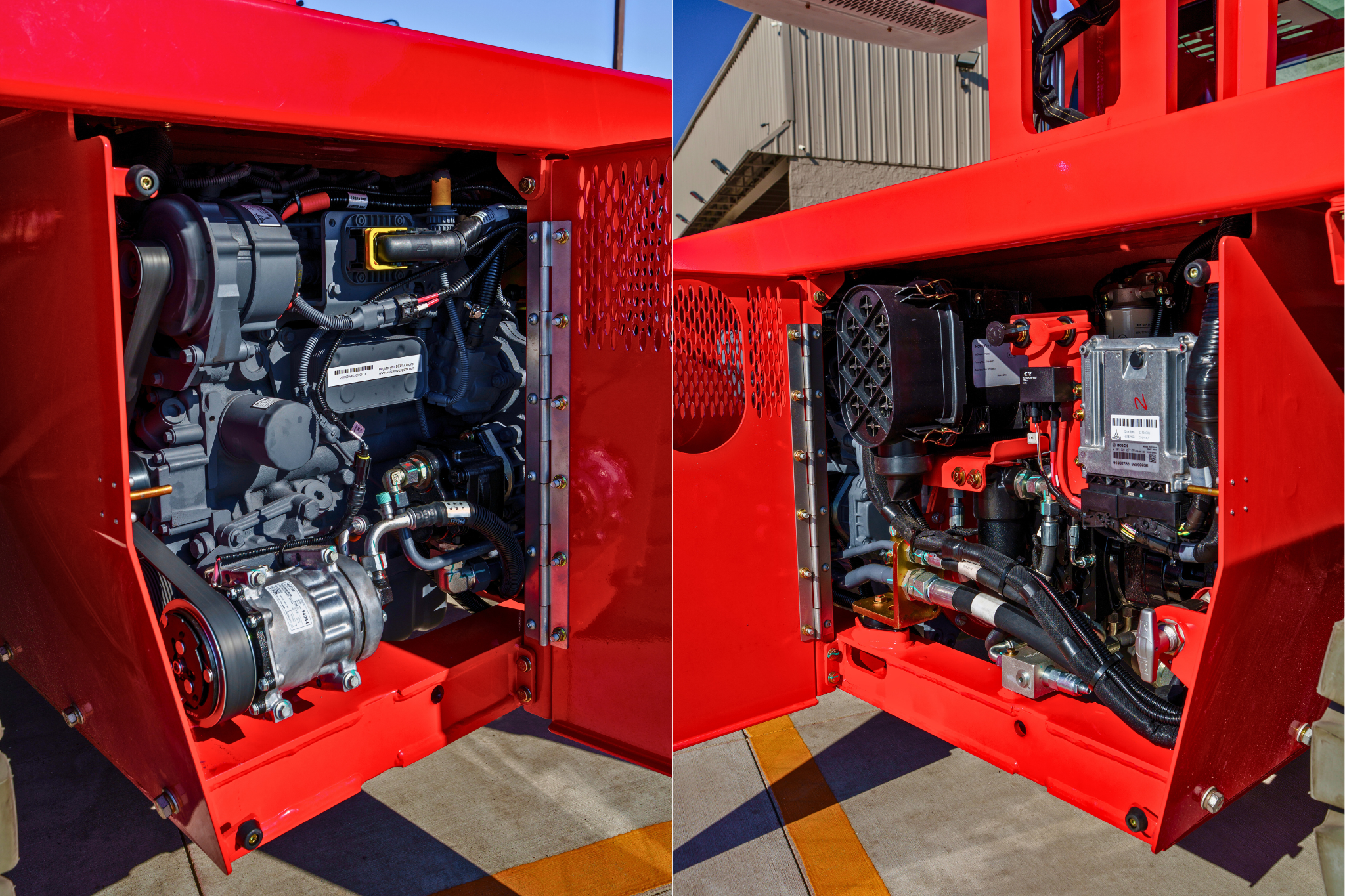

Easy Service Access
The side‑mounted engine allows faster, safer ground‑level maintenance and improved service access.
Preliminary Key Specs
| Specification | US | Metric |
|---|---|---|
| Maximum Lift Capacity | 18,000 lbs. | 9.0 ton |
| Max Sheave Height / Cap. – No Outriggers | 46.7 ft / 4,450 lbs | 14.2 m / 2,018 kg |
| Max Sheave Height / Cap. – With Outriggers | 46.7 ft / 6,100 lbs | 14.2 m / 2,767 kg |
| Max Outreach / Cap. on Tires | 40 ft / 500 lbs | 12.2 m / 227 kg |
| Max Outreach / Cap. on Outriggers | 40 ft / 1,400 lbs | 12.2 m / 635 kg |
| Standard Boom Extension | 10 ft | 3.3 m |
| Stowed Height | 7 ft-10 in. | 2.6 m |
| Overall Width | 6.5 ft | 2.16 m |
| Tailswing | 24 in. | 0.67 m |
| Max Drive Speed | 15 mph | 24 km/h |
| Gross Vehicle Weight | 19,800 lbs. | 8,981 kg |
| Tires | Foam-Filled, Non-Marking | |
| Diesel Power Source | Deutz 74Hp Tier 4F | |
| LP Version | Deutz 72Hp | |
Specifications are preliminary and subject to change. Contact MEC for details.

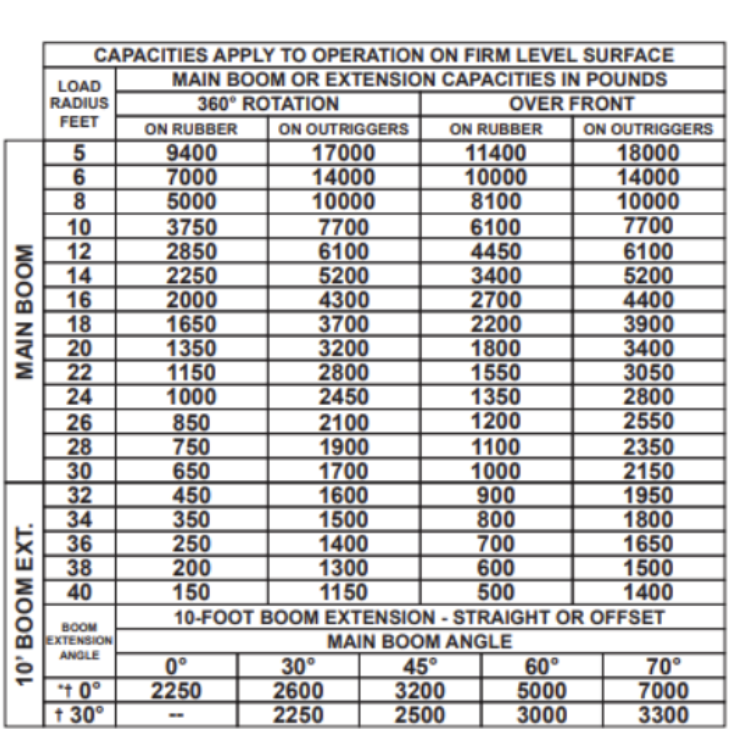

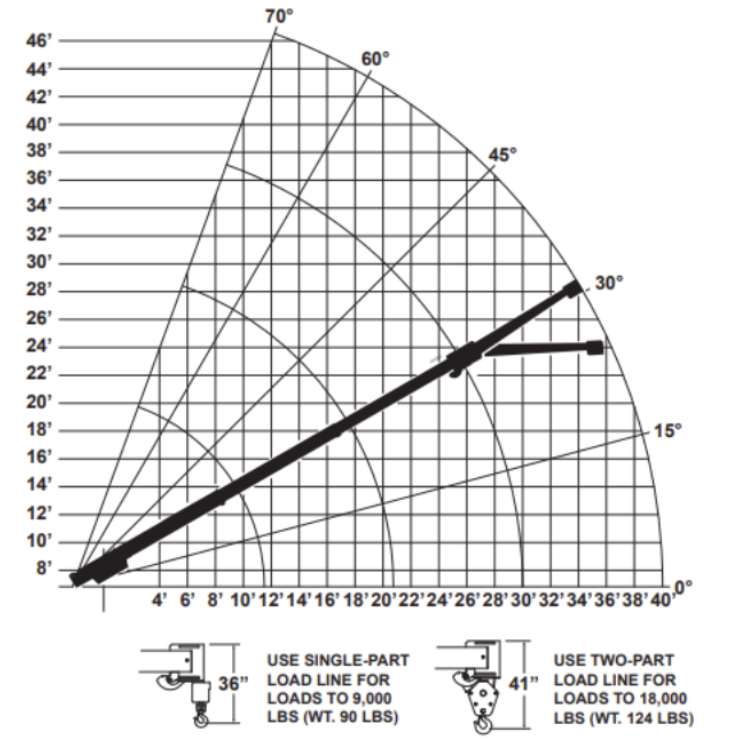

LIFTING CAPACITY AT A GLANCE
On Rubber – No Outriggers
With Outriggers Deployed
READY TO LIFT MORE?
The CD‑9T’s operator‑forward design makes it a smart addition for rental fleets and an easy choice for customers.
